DME34 Series Motor with Gearbox 36G - High-Output Compact DC Motor
DME34 Series Motor with Gearbox 36G - High-Output Compact DC Motor
SKU:PER-095386
Powerful and compact DC motor with optimized brush design for high efficiency and long life. Wide gear head selection available.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DME34 Series Motor with Gearbox 36G - High-Output Compact DC Motor
$189.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motor with Gearbox 36G - High-Output Compact DC Motor
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

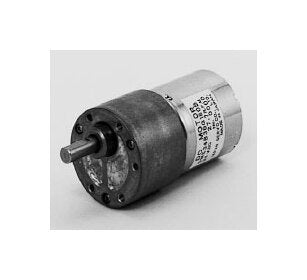

The DME34 Series Motor with Gearbox 36G is a powerful and compact DC motor designed for a variety of industrial applications. With a power range from 0.7 W to 26 W, this motor offers high output and efficiency. Its optimized brush design allows for over 1 million cycles of intermittent operation and a continuous operating life of 1000 hours. The motor features high heat dissipation and heat resistance for increased output, along with robust construction and large diameter output shaft with ball bearings for high radial load capacity. Additionally, it offers low noise, increased insulation, and a wide selection of gear heads and reduction ratios to suit diverse needs. Available with magnetic revolution sensor and noise filter for enhanced functionality.
Product Specifications
Additional Information 0
DME34-With-Gearbox-36G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
310 mA | 0.31 A
Specifications Gear Ratio
400
Specifications L1
2.551 in | 64.8 mm
Specifications L2
1.173 in | 29.8 mm
Specifications Model Code
BB
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
4.5 W
Specifications Rated Speed
12 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Weight
230 g | 0.51 lb
