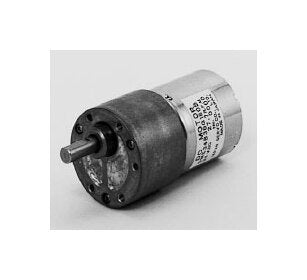

DME34 Series Motor with Gearbox 36G - High Power DC Motor
DME34 Series Motor with Gearbox 36G - High Power DC Motor
SKU:PER-4e2b15
High-power DME34 Series Motor with Gearbox 36G - Reliable, efficient, and durable for industrial use.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series Motor with Gearbox 36G - High Power DC Motor
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motor with Gearbox 36G - High Power DC Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motor with Gearbox 36G offers exceptional performance with a power range of 0.7 W to 26 W. Featuring robust construction and optimized brush design, it ensures long-life operation over 1 million cycles. With high heat dissipation and resistance, this motor achieves superior output while maintaining low noise levels and increased insulation. Ideal for institutional applications, it meets stringent durability and efficiency standards.
Product Specifications
Additional Information 0
DME34-With-Gearbox-36G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
200 mA | 0.2 A
Specifications Gear Ratio
400
Specifications L1
2.335 in | 59.3 mm
Specifications L2
1.173 in | 29.8 mm
Specifications Model Code
SA
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
1.3 W
Specifications Rated Speed
9.5 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
220 g | 0.49 lb
