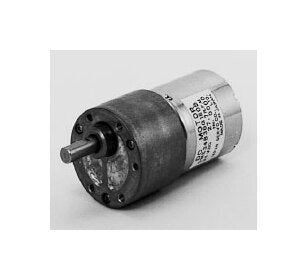

DME34 Series Motor with Gearbox 36G - High Power DC Motor
DME34 Series Motor with Gearbox 36G - High Power DC Motor
SKU:PER-fda854
Compact high-power DC motor with long-life performance, high heat dissipation, and noise reduction features for institutional procurement.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series Motor with Gearbox 36G - High Power DC Motor
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motor with Gearbox 36G - High Power DC Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motor with Gearbox 36G is a compact yet powerful solution with a power range from 0.7 W to 26 W. Featuring a variety of gear heads for versatility, this motor ensures long-life performance through optimized brush design. With high heat dissipation and resistance, it delivers superior output and strength, supported by a large selection of gear heads and reduction ratios. Accompanied by a magnetic revolution sensor and noise filter, this motor is ideal for institutional and government procurement applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME34-With-Gearbox-36G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Gear Ratio
75
Specifications L1
2.354 in | 59.8 mm
Specifications L2
0.976 in | 24.8 mm
Specifications Model Code
BA
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
4.5 W
Specifications Rated Speed
54.9 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
210 g | 0.46 lb
