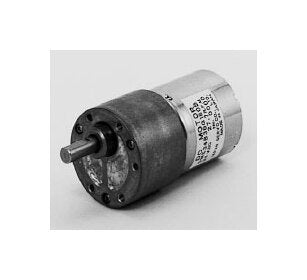

DME34 Series Motor with Gearbox 36G - High Power Efficiency

Name: DME34 Series Motor with Gearbox 36G - High Power Efficiency
Brand: Elinco International JPC, Inc.
SKU: PER-ee4fdf
Price: 199.99 USD
Availability: OutOfStock

SKU:PER-ee4fdf

Compact & powerful DME34 Series Motors with Gearbox 36G for lasting performance & low noise operation.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DME34 Series Motors with Gearbox 36G offer exceptional compact size and high power ranging from 0.7W to 26W. With a variety of line ups and gear heads suitable for institutional needs, these motors ensure long-life performance with over 1 million cycles of intermittent operation. Their high output, heat dissipation capacity, and robust construction provide superior strength and durability. Enjoy low noise operation and increased insulation with features like new resin brush holders. Choose from a wide selection of gear heads and reduction ratios to meet your specific requirements, with options for magnetic revolution sensors and noise filters available.

Product Specifications

Additional Information 0

DME34-With-Gearbox-36G.jpg | Gear-Head Design | Motor Selection Guide

Customize 0

Custom Designs

Dimensions 0


Specifications Current Rating

100 mA | 0.1 A

Specifications Gear Ratio

120

Specifications L1

2.236 in | 56.8 mm

Specifications L2

1.075 in | 27.3 mm

Specifications Model Code

Specifications Motor Frame Size

37 mm | 1.457 in

Specifications Note

Rotation of gearbox shaft is in reverse of rotation of motor.

Specifications Product Type

DC Motor with Gearbox 36G

Specifications Rated Output

1.3 W

Specifications Rated Speed

27.5 r/min

Specifications Rated Torque

38.88 ozÂ·in | 0.27 NÂ·m

Specifications Rated Voltage

24 V

Specifications Series

DME34

Specifications Weight

220 g | 0.49 lb
