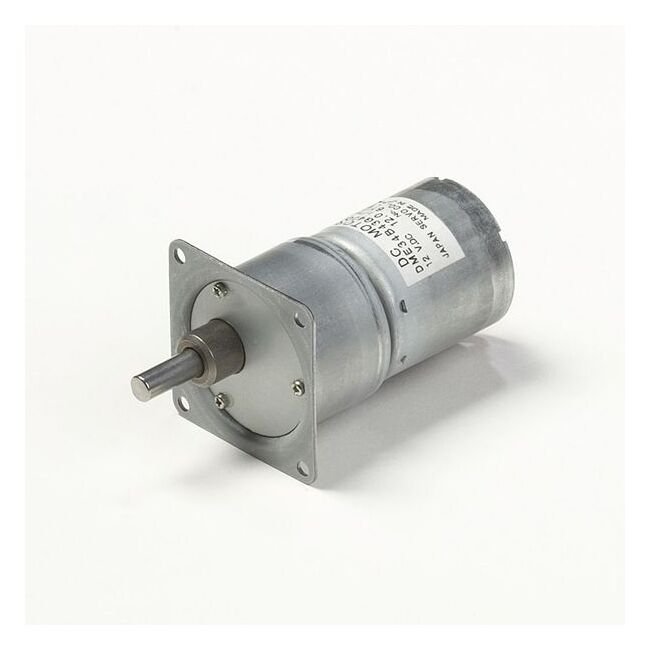

DME34 Series Motor with Gearbox 43G - High Output DC Motor

Name: DME34 Series Motor with Gearbox 43G - High Output DC Motor
Brand: Elinco International JPC, Inc.
SKU: PER-52da6e
Price: 79.99 USD
Availability: OutOfStock

SKU:PER-52da6e

High-performance DME34 Series DC Motor with Gearbox 43G for efficient operations in diverse applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DME34 Series Motor with Gearbox 43G is a compact yet powerful DC motor featuring a wide range of models and gear heads. With optimized brush design for long-life operation, high output, and robust construction, this motor offers high radial load capacity and low noise. It comes with a variety of gear heads, reduction ratios, magnetic revolution sensor, and noise filter options, making it versatile for multiple applications. Rated for continuous operation and intermittent cycles, this motor is built for durability and efficiency, meeting the demanding standards of institutional and government procurement requirements.

Product Specifications

Additional Information 0

DME34B43G.jpg | DME34-With-Gearbox-43G.jpg | Gear-Head Design | Motor Selection Guide

Customize 0

Custom Designs

Dimensions 0


Specifications Current Rating

310 mA | 0.31 A

Specifications Gear Ratio

Specifications L1

2.197 in | 55.8 mm

Specifications L2

0.819 in | 20.8 mm

Specifications Model Code

Specifications Motor Frame Size

43 x 43 mm | 1.693 x 1.693 in

Specifications Note

Rotation of gearbox shaft is in reverse of rotation of motor.

Specifications Product Type

DC Motor with Gearbox 43G

Specifications Rated Output

4.5 W

Specifications Rated Speed

185 r/min

Specifications Rated Torque

23.61 ozÂ·in | 0.16 NÂ·m

Specifications Rated Voltage

24 V

Specifications Series

DME34

Specifications Weight

210 g | 0.46 lb
