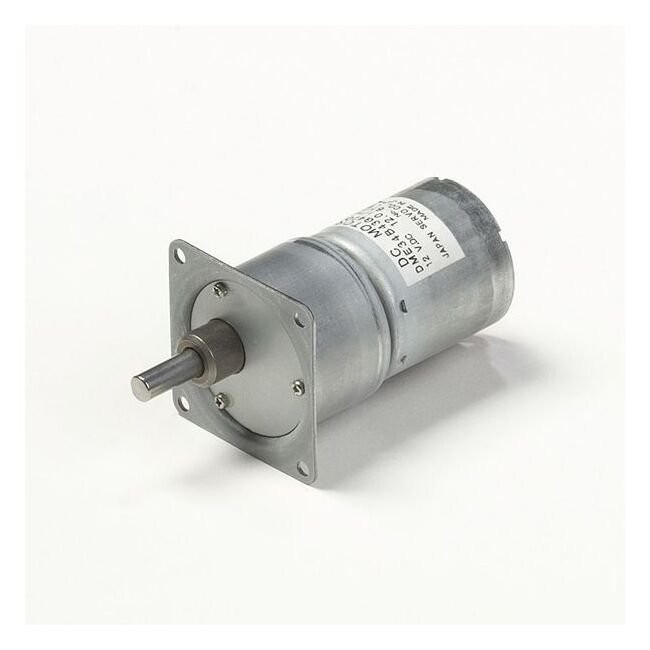

DME34 Series Motor with Gearbox 43G - High Power DC Motor
DME34 Series Motor with Gearbox 43G - High Power DC Motor
SKU:PER-1eee9c
Compact and powerful DME34 Series Motor with Gearbox 43G, designed for durability and high performance.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DME34 Series Motor with Gearbox 43G - High Power DC Motor
$99.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motor with Gearbox 43G - High Power DC Motor
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motor with Gearbox 43G offers exceptional performance with a power range from 0.7W to 26W. With a wide variety of line ups and gear heads available, this compact motor boasts a long operational life of over 1 million cycles. Its high output, strength, low noise, and increased insulation make it a reliable choice for various applications. Additionally, features such as high heat dissipation, a large selection of gear heads, and optional magnetic revolution sensor and noise filter ensure it meets the demanding requirements of both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME34B43G.jpg | DME34-With-Gearbox-43G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Gear Ratio
250
Specifications L1
2.394 in | 60.8 mm
Specifications L2
1.016 in | 25.8 mm
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
4.5 W
Specifications Rated Speed
18.8 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
210 g | 0.46 lb
