DME34 Series Motor with Gearbox 43G - High Power DC Motor
DME34 Series Motor with Gearbox 43G - High Power DC Motor
SKU:PER-4bf072
Compact, powerful DME34 Series DC motor with Gearbox 43G for high-performance gear applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DME34 Series Motor with Gearbox 43G - High Power DC Motor
$189.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motor with Gearbox 43G - High Power DC Motor
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

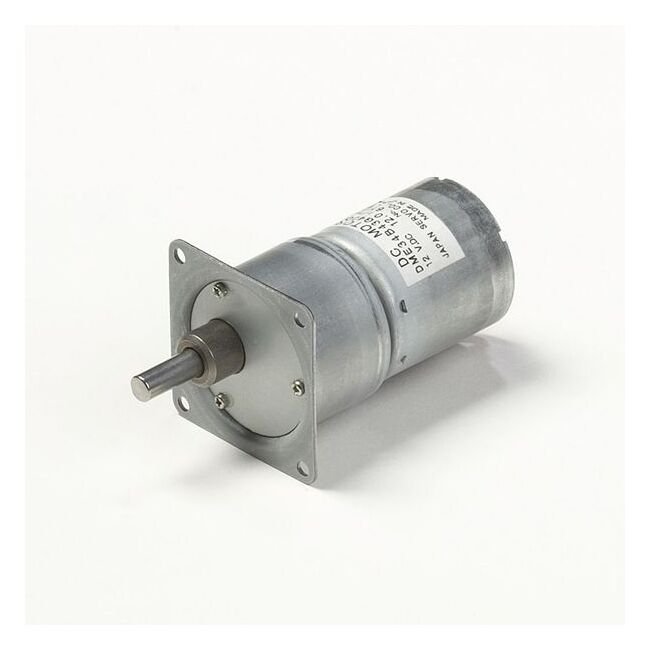

The DME34 Series Motor with Gearbox 43G is a compact and powerful DC motor designed for durability and high performance. With a wide range of gear heads available, it offers long-life operation, high output, and strength thanks to its optimized brush design and robust construction. This motor features low noise, increased insulation, and a selection of gear heads to meet diverse institutional procurement needs. It also comes with a magnetic revolution sensor and noise filter for enhanced functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME34B43G.jpg | DME34-With-Gearbox-43G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Gear Ratio
100
Specifications L1
2.295 in | 58.3 mm
Specifications L2
0.917 in | 23.3 mm
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
4.5 W
Specifications Rated Speed
43.4 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
210 g | 0.46 lb
