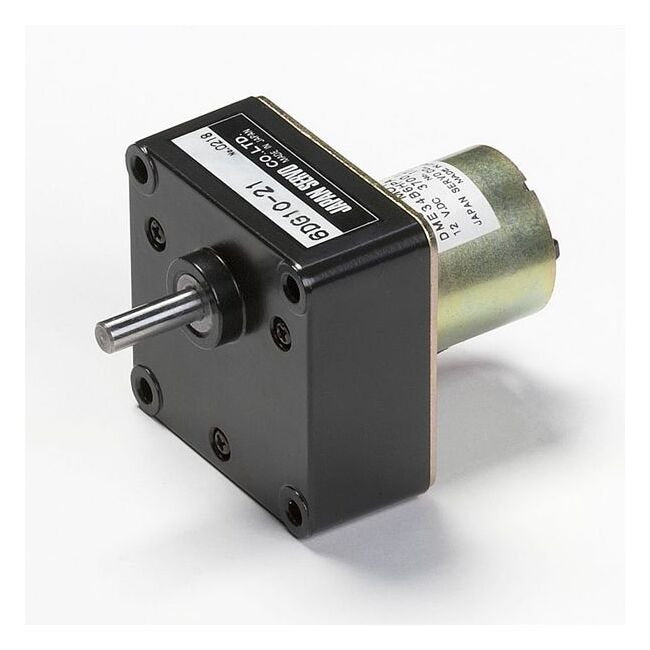

DME34 Series Motor with Gearbox 60G - High Power DC Motor
DME34 Series Motor with Gearbox 60G - High Power DC Motor
SKU:PER-89572e
Compact high-power DME34 Series Motor with Gearbox 60G for reliable performance in various applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series Motor with Gearbox 60G - High Power DC Motor
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motor with Gearbox 60G - High Power DC Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motor with Gearbox 60G offers a compact design with high power ranging from 0.7W to 26W. With a variety of gear heads available, including options like 32 Dia and 80 Sq, this motor is designed for long-lasting performance with over 1 million cycles of intermittent operation. It boasts high output facilitated by excellent heat dissipation and resistance, resulting in increased strength and radial load capacity. Additionally, this motor ensures low noise, increased insulation, and comes with various gear head options and reduction ratios. Equipped with a magnetic revolution sensor and noise filter, this motor is a reliable choice for diverse applications.
Product Specifications
Additional Information 0
DME34B6HP.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
100 mA | 0.1 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
900
Specifications Model Code
SB
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example :DME34B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example: DME34B6H_B
Specifications Product Type
DC Motor with Gearbox 60G
Specifications Rated Output
1.3 W
Specifications Rated Speed
4.2 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
