DME34 Series Motor with Gearbox 60G - High Power DC Motor
DME34 Series Motor with Gearbox 60G - High Power DC Motor
SKU:PER-c869a3
Compact, powerful DC motor with long life, high output, and low noise generation.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series Motor with Gearbox 60G - High Power DC Motor
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motor with Gearbox 60G - High Power DC Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

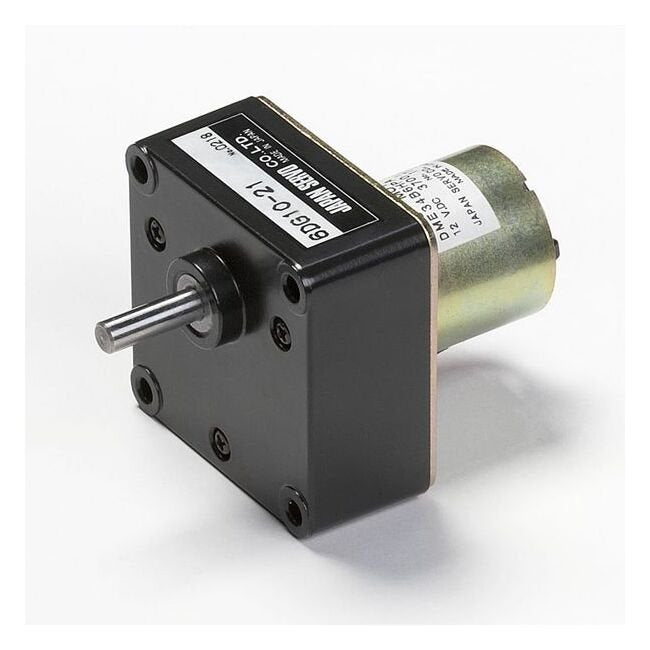

The DME34 Series Motor with Gearbox 60G is a compact and powerful DC motor designed for a variety of applications. With power ranging from 0.7 W to 26 W, this motor boasts a long operating life exceeding 1 million cycles. It offers high output due to superior heat dissipation and heat resistance capabilities. The motor's robust construction provides a high radial load capacity, while ensuring low noise and enhanced insulation. Additionally, a wide selection of gear heads and reduction ratios are available, along with options for magnetic revolution sensors and noise filters.
Product Specifications
Additional Information 0
DME34B6HP.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
50
Specifications Model Code
BA
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example :DME34B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example: DME34B6H_B
Specifications Product Type
DC Motor with Gearbox 60G
Specifications Rated Output
4.5 W
Specifications Rated Speed
74 r/min
Specifications Rated Torque
59.71 oz·in | 0.42 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
