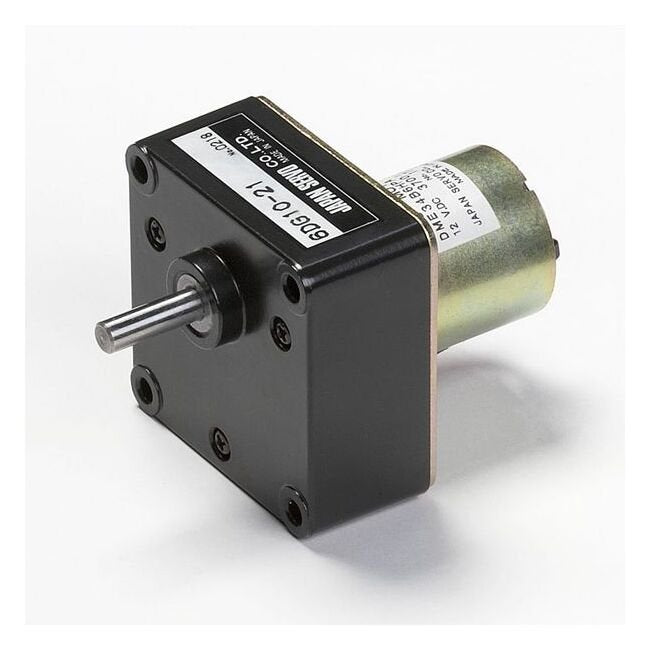

DME34 Series Motor with Gearbox 60G - High Power DC Motor for Institutional Applications
DME34 Series Motor with Gearbox 60G - High Power DC Motor for Institutional Applications
SKU:PER-2b8827
Compact yet powerful DME34 Series Motor with Gearbox 60G for high-performance institutional applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DME34 Series Motor with Gearbox 60G - High Power DC Motor for Institutional Applications
$349.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motor with Gearbox 60G - High Power DC Motor for Institutional Applications
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motor with Gearbox 60G is a powerhouse of compact size and high power ranging from 0.7 W to 26 W. With a variety of line ups and gear heads available, it offers long-life durability, high output, and strength. Its low noise operation, increased insulation, and selection of gear heads make it ideal for various institutional needs. This motor is designed for intermittent operation over 1 million cycles with optimized brush design, ensuring continuous operating life of 1000 hours. The high radial load capacity, large diameter output shaft, and ball bearings contribute to its exceptional performance. Additionally, it comes with magnetic revolution sensor and noise filter options.
Product Specifications
Additional Information 0
DME34B6HP.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
100 mA | 0.1 A
Specifications Frame Size
61 x 61 mm
Specifications Gear Ratio
50
Specifications Model Code
SB
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example :DME34B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example: DME34B6H_B
Specifications Product Type
DC Motor with Gearbox 60G
Specifications Rated Output
1.3 W
Specifications Rated Speed
66 r/min
Specifications Rated Torque
19.44 oz·in | 0.14 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
