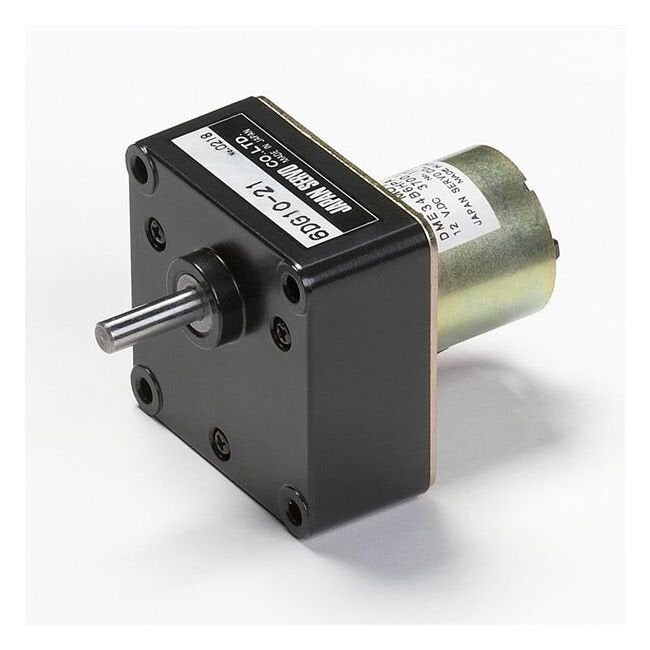

DME34 Series Motor with Gearbox 60G - High Power DC Motor for Precision Applications
DME34 Series Motor with Gearbox 60G - High Power DC Motor for Precision Applications
SKU:PER-7b176e
Discover the high-power DME34 Series Motor with Gearbox 60G for precision and durability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME34 Series Motor with Gearbox 60G - High Power DC Motor for Precision Applications
$129.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motor with Gearbox 60G - High Power DC Motor for Precision Applications
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motor with Gearbox 60G offers a compact design with high power output ranging from 0.7W to 26W, ideal for precision applications. Featuring a durable construction optimized for long-life operation, this motor ensures reliability with over 1 million cycles of intermittent operation. With high heat dissipation and resistance, it delivers superior output, complemented by its robust construction and large diameter output shaft for high radial load capacity. The motor also boasts low noise operation and increased insulation, along with a selection of gear heads and reduction ratios to suit diverse needs. Available with magnetic revolution sensor and noise filter for enhanced functionality.
Product Specifications
Additional Information 0
DME34B6HP.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
900
Specifications Model Code
BA
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example :DME34B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example: DME34B6H_B
Specifications Product Type
DC Motor with Gearbox 60G
Specifications Rated Output
4.5 W
Specifications Rated Speed
5.3 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
