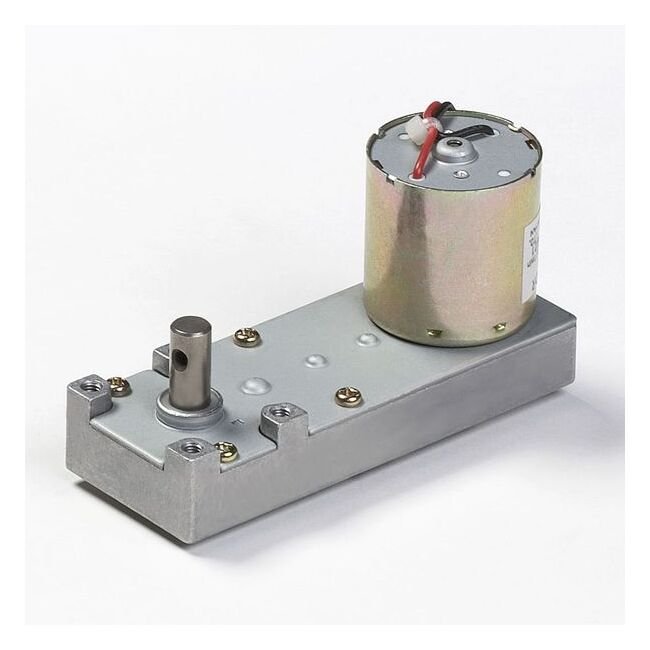

DME34 Series Motor with Gearbox L KB-200
DME34 Series Motor with Gearbox L KB-200
SKU:PER-c99c4d
Compact, high-power DME34 Series Motor with Gearbox L KB-200 - Long-life operation, high output, and custom design options.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series Motor with Gearbox L KB-200
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motor with Gearbox L KB-200
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motor with Gearbox L KB-200 offers a compact size with high power ranging from 0.7W to 26W. With a variety of line-ups, gear heads, and robust construction, it ensures long-life operation over 1 million cycles. This motor boasts high output, heat dissipation, and resistance for increased performance. Its low noise, large selection of gear heads, and custom design options make it ideal for diverse institutional and consumer needs.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
410 mA | 0.41 A
Specifications Gear Ratio
200
Specifications L
59.8 mm
Specifications Model Code
KB
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
7 W
Specifications Rated Speed
23.2 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Weight
310 g | 0.68 lb
