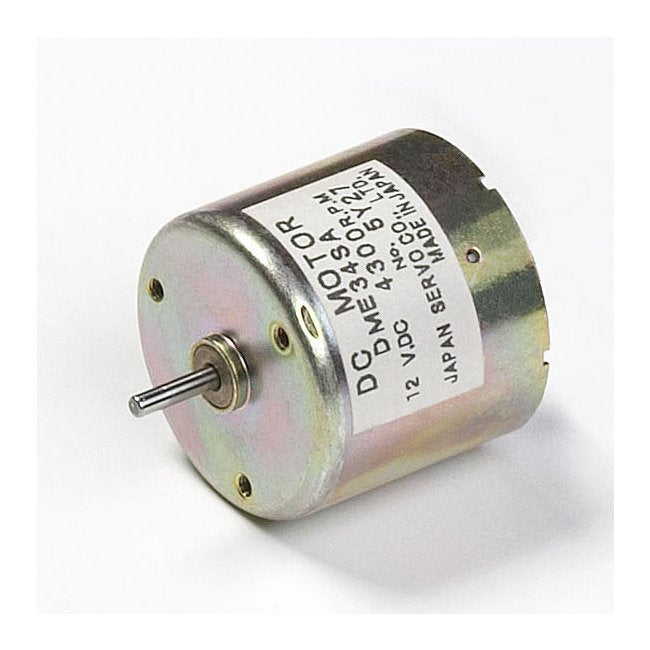

DME34 Series Motor with Pulse Generator - High Power DC Motor

Name: DME34 Series Motor with Pulse Generator - High Power DC Motor
Brand: Elinco International JPC, Inc.
SKU: PER-6a9043
Price: 149.99 USD
Availability: OutOfStock

SKU:PER-6a9043

Compact, high-power DC motor with optimized brush design for long-life operation and high heat dissipation. Ideal for industrial applications.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DME34 Series Motor with Pulse Generator is a compact yet powerful DC motor designed for high performance applications. With a range of 0.7W to 26W power output, this motor offers versatility with 224 different modes and compatibility with various gear heads. Its optimized brush design ensures long-life operation over 1 million cycles and a continuous operating life of 1000 hours. Additionally, the motor features high heat dissipation, heat resistance, and radial load capacity, making it ideal for demanding industrial environments. The availability of magnetic revolution sensors and noise filters further enhance its functionality, making it a reliable choice for diverse applications.

Product Specifications

Additional Information 0

Customize 0

Custom Designs

Dimensions 0


Specifications Current Rating

200 mA | 0.2 A

Specifications L

29.5 mm

Specifications Model Code

Specifications Motor Frame Size

34 mm | 1.339 in

Specifications No Load Current

0.04 A

Specifications No Load Speed

4300 r/min

Specifications Product Type

DC Motor

Specifications Rated Output

1.3 W

Specifications Rated Speed

3300 r/min

Specifications Rated Torque

3.9 mNÂ·m | 0.56 ozÂ·in

Specifications Rated Voltage

12 V

Specifications Series

DME34

Specifications Stall Torque

17 mNÂ·m | 2.36 ozÂ·in

Specifications Weight

100 g | 0.22 lb

Torque Curve 0


DME34 Series Motor with Pulse Generator - High Power DC Motor
