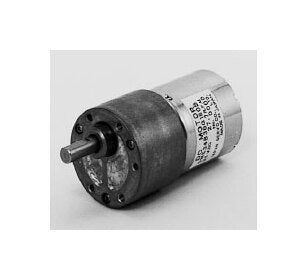

DME34 Series Motors with Gearbox 36G - High Power DC Motor
DME34 Series Motors with Gearbox 36G - High Power DC Motor
SKU:PER-7ddbc3
Compact, high-power DME34 Series Motors with Gearbox 36G for reliable and efficient performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series Motors with Gearbox 36G - High Power DC Motor
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motors with Gearbox 36G - High Power DC Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox 36G offer exceptional performance in a compact size. With power ranging from 0.7 W to 26 W and a wide variety of gear heads available, these motors are designed for longevity and efficiency. Featuring optimized brush design for extended lifespan, high output capacity, and low noise operation, these motors are ideal for applications requiring reliability and precision. Additionally, the availability of various gear ratios and reduction options ensures suitability for diverse needs. With a rated voltage of 12 V and compliance with industry standards, these motors are a top choice for institutional buyers seeking quality and performance.
Product Specifications
Additional Information 0
DME34-With-Gearbox-36G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Gear Ratio
60
Specifications L1
2.354 in | 59.8 mm
Specifications L2
0.976 in | 24.8 mm
Specifications Model Code
BA
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
4.5 W
Specifications Rated Speed
65 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
210 g | 0.46 lb
