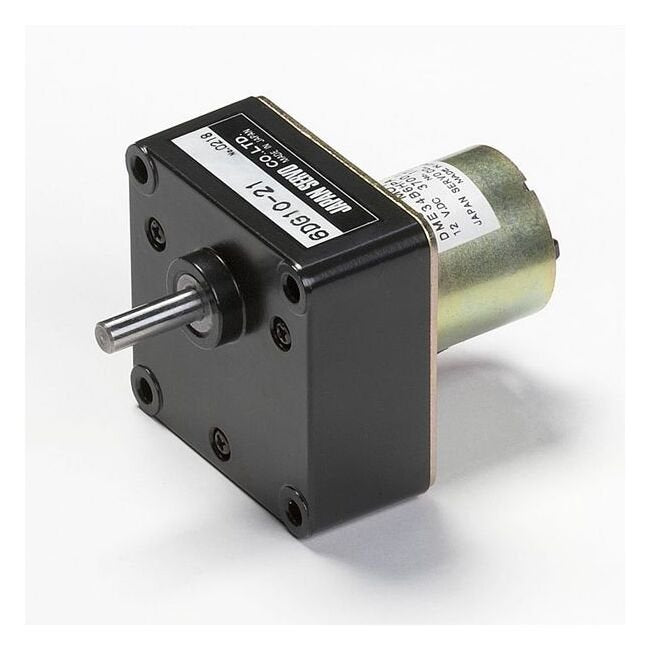

DME34 Series Motors with Gearbox 60G - High Power DC Motor
DME34 Series Motors with Gearbox 60G - High Power DC Motor
SKU:PER-ee6667
High power DC motor with compact design, long-life performance, low noise operation, and versatile gear options.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
DME34 Series Motors with Gearbox 60G - High Power DC Motor
$79.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motors with Gearbox 60G - High Power DC Motor
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox 60G offers a compact design with high power output ranging from 0.7 W to 26 W. With a variety of line ups and gear heads available, this motor ensures long-life performance with intermittent operation over 1 million cycles. Its high heat dissipation and strength result in increased output, while the low noise operation and enhanced insulation make it suitable for various applications. Equipped with a wide selection of gear heads and reduction ratios, this motor also features options like magnetic revolution sensors and noise filters, catering to diverse institutional needs.
Product Specifications
Additional Information 0
DME34B6HP.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
310 mA | 0.31 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
15
Specifications Model Code
BB
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example :DME34B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example: DME34B6H_B
Specifications Product Type
DC Motor with Gearbox 60G
Specifications Rated Output
4.5 W
Specifications Rated Speed
246 r/min
Specifications Rated Torque
19.44 oz·in | 0.14 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
