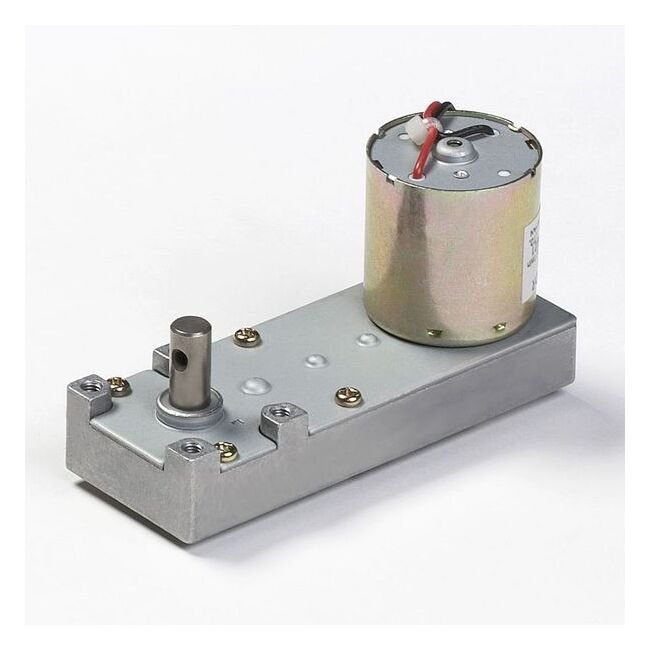

DME34 Series Motors with Gearbox L - High Power DC Motor
DME34 Series Motors with Gearbox L - High Power DC Motor
SKU:PER-3d9f62
High-performance DME34 Series Motors with Gearbox L - optimized for durability and power output
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series Motors with Gearbox L - High Power DC Motor
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motors with Gearbox L - High Power DC Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox L deliver exceptional performance with a power range from 0.7W to 26W, offering a wide variety of line-ups and gear head options. Designed for durability, these motors feature an optimized brush design for over 1 million cycles of intermittent operation and a continuous operating life of 1000 hours. With high heat dissipation and heat resistance, the motors achieve higher output, and their robust construction ensures high radial load capacity. The motors come with a selection of gear heads and reduction ratios, catering to diverse needs, and are available with magnetic revolution sensors and noise filters for enhanced functionality.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
100 mA | 0.1 A
Specifications Gear Ratio
50
Specifications L
44.3 mm
Specifications Model Code
SB
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
1.3 W
Specifications Rated Speed
66 r/min
Specifications Rated Torque
15.28 oz·in | 0.11 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Weight
270 g | 0.6 lb
