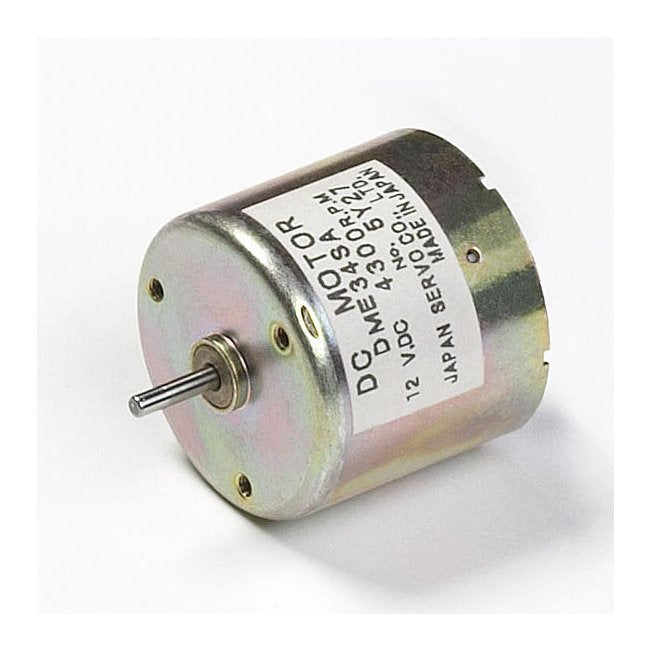

DME34 Series Motors with Pulse Generators - High Power DC Motor
DME34 Series Motors with Pulse Generators - High Power DC Motor
SKU:PER-a1e6d2
Compact and powerful DME34 Series Motors with Pulse Generators, designed for durability and high performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series Motors with Pulse Generators - High Power DC Motor
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series Motors with Pulse Generators - High Power DC Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Pulse Generators are compact yet powerful, ranging from 0.7 W to 26 W, making them ideal for various applications. Designed for longevity, these motors can handle over 1 million cycles and offer continuous operation for 1000 hours. With a high heat dissipation and heat resistance, they deliver superior output and strength. The motors feature low noise, increased insulation, and a wide selection of gear heads and reduction ratios, ensuring they meet diverse needs. Additionally, equipped with a magnetic revolution sensor and noise filter, these motors are designed to exceed industry standards.
Product Specifications
Additional Information 0
Gear-Head Design | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor | Untitled-8.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
100 mA | 0.1 A
Specifications L
29.5 mm
Specifications Model Code
SB
Specifications Motor Frame Size
34 mm | 1.339 in
Specifications No Load Current
0.02 A
Specifications No Load Speed
4300 r/min
Specifications Product Type
DC Motor
Specifications Rated Output
1.3 W
Specifications Rated Speed
3300 r/min
Specifications Rated Torque
3.9 mN·m | 0.56 oz·in
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Stall Torque
17 mN·m | 2.36 oz·in
Specifications Weight
100 g | 0.22 lb
Torque Curve 0
