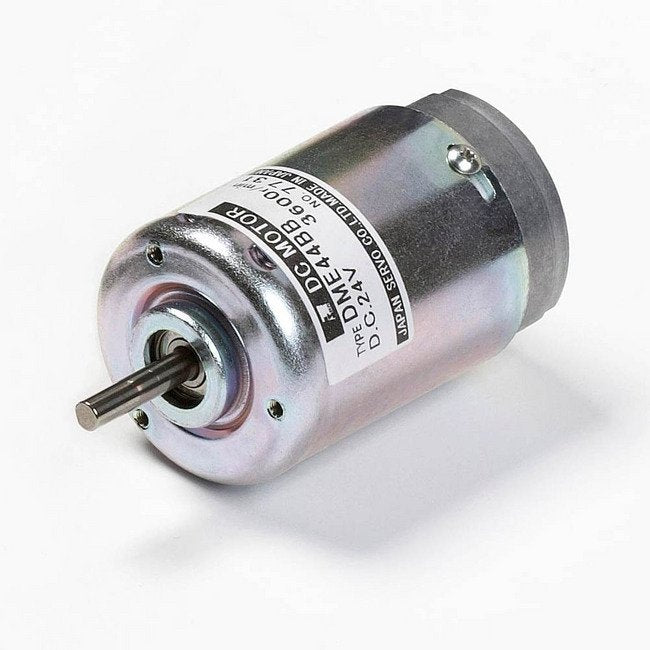

DME44 Series DC Motors with Pulse Generators
DME44 Series DC Motors with Pulse Generators
SKU:PER-f25215
High-power DC motors with pulse generators for durable, efficient operations. Optimal for diverse applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME44 Series DC Motors with Pulse Generators
$129.99
Quantity: 1
Claim Your Seller Account
DME44 Series DC Motors with Pulse Generators
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series DC Motors with Pulse Generators are meticulously designed for high power efficiency ranging from 0.7 W to 26 W. With a wide selection of gear heads and robust construction, these motors deliver superior performance. Featuring optimized brush design for extended lifespan, high heat dissipation for increased output, and low noise operation. These motors also offer a variety of gear heads and reduction ratios to suit diverse needs. Additionally, they come with options for magnetic revolution sensors and noise filters, making them ideal for applications demanding precision and reliability.
Product Specifications
Additional Information 0
Connection Diagram | Connection of Revolution Sensor Magnet Type Motor | DME44 Series Motors with Pulse Generators (DME44BB) | Driver and Motor Selection Guide | Gear-Head Design | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Dimensions | DME44BMB
Specifications Current Rating
940 mA | 0.94 A
Specifications Diameter
1.732 in | 44 mm
Specifications Model Code
BB
Specifications No Load Current
0.16 A
Specifications No Load Speed
4300 r/min
Specifications Product Type
DC Motor
Specifications Rated Output
14.8 W
Specifications Rated Speed
3600 r/min
Specifications Rated Torque
39 mN·m | 5.55 oz·in
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Stall Torque
250 mN·m | 36.11 oz·in
Specifications Weight
400 g | 0.88 lb
Torque Curve 0
