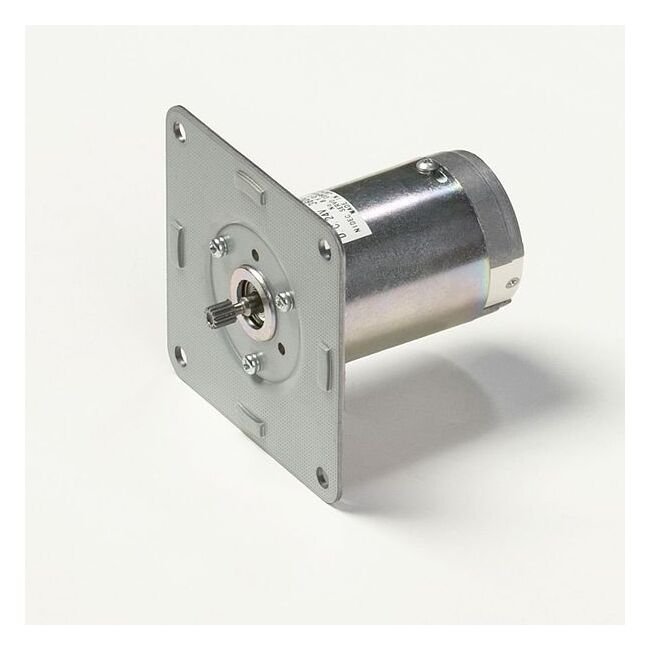

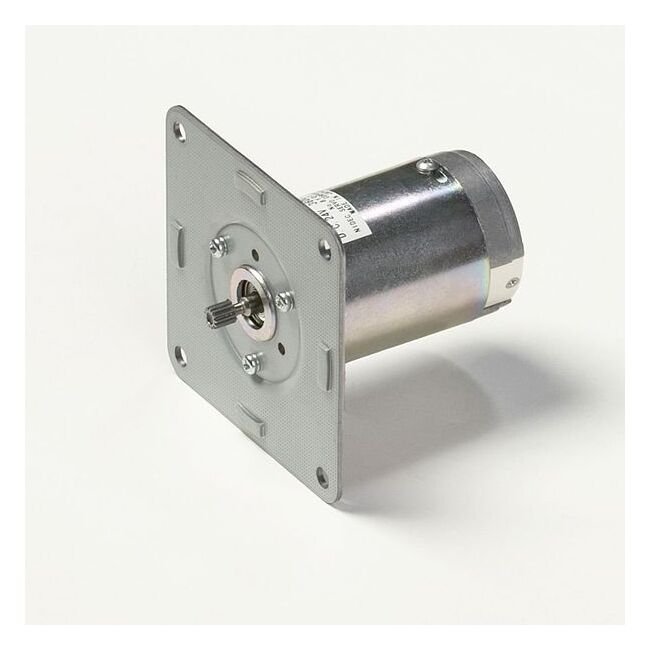

DME44 Series High-Power Motors with Gearbox 8DG
DME44 Series High-Power Motors with Gearbox 8DG
SKU:PER-cbb419
High-power DME44 Motors with Gearbox 8DG for reliable and durable institutional applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
DME44 Series High-Power Motors with Gearbox 8DG
$399.99
Quantity: 1
Claim Your Seller Account
DME44 Series High-Power Motors with Gearbox 8DG
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motors with Gearbox 8DG are precision-engineered to deliver compact yet high-power performance ranging from 0.7 W to 26 W. With a wide variety of gear heads available, including 32 Dia to 80 Sq options, these motors feature optimized brush designs for long-lasting durability, enabling over 1 million cycles of intermittent operation. Designed for institutional applications, they offer high radial load capacity, low noise, and increased insulation. With features like high heat dissipation, heat resistance, and ball bearings, these motors ensure consistent and reliable operation. Additionally, a range of gear heads and reduction ratios cater to diverse institutional needs, while optional magnetic revolution sensors and noise filters enhance operational efficiency.
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 1.969 in | M5 x 50 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
50
Specifications L1
3.98 in | 101.1 mm
Specifications L2
1.26 in | 32 mm
Specifications Model Code
BB
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motorWhen ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
72 r/min
Specifications Rated Torque
194.42 oz·in | 1.400 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
0.9 kg | 1.98 lb
