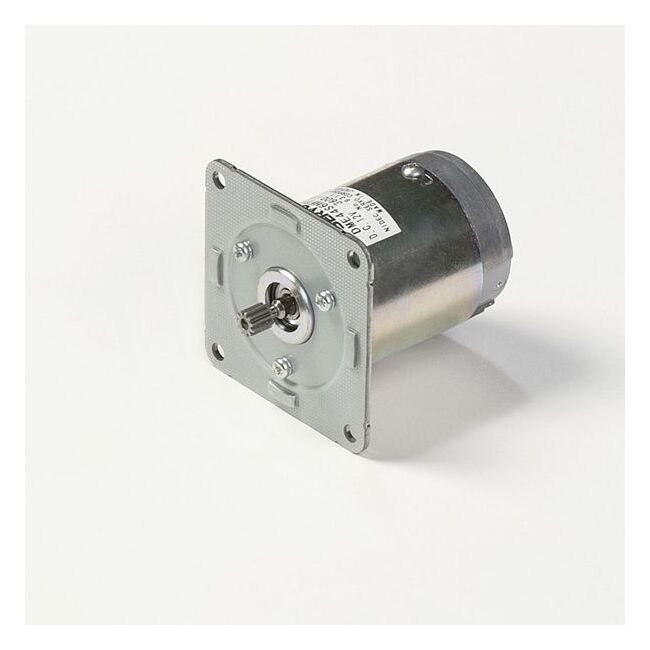

DME44 Series Motor with Gearbox 6DGF - High Power 9.2W, 12V
DME44 Series Motor with Gearbox 6DGF - High Power 9.2W, 12V
SKU:PER-f045d7
Compact and powerful DME44 Series Motors with Gearbox 6DGF, offering high heat dissipation, low noise, and durability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME44 Series Motor with Gearbox 6DGF - High Power 9.2W, 12V
$129.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motor with Gearbox 6DGF - High Power 9.2W, 12V
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motors with Gearbox 6DGF offer a compact size with high power output ranging from 0.7W to 26W. Designed for durability, these motors feature optimized brush design for long-life operation, with a continuous operating life of 2000 hours. With high heat dissipation and resistance, they achieve exceptional performance and can handle high radial loads due to robust construction. These motors boast low noise, increased insulation, and a wide range of gear heads and reduction ratios available. Additionally, they come with magnetic revolution sensors and noise filters, catering to diverse institutional procurement needs.
Product Specifications
Additional Information 0
DME44S6HF.jpg | DME44-With-Gearbox-6DGF.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
1310 mA | 1.31 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
100
Specifications Model Code
SA
Specifications Product Type
Motor with Gearbox 6DGF
Specifications Rated Output
9.2 W
Specifications Rated Speed
36 r/min
Specifications Rated Torque
222.19 oz·in | 1.600 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME44
