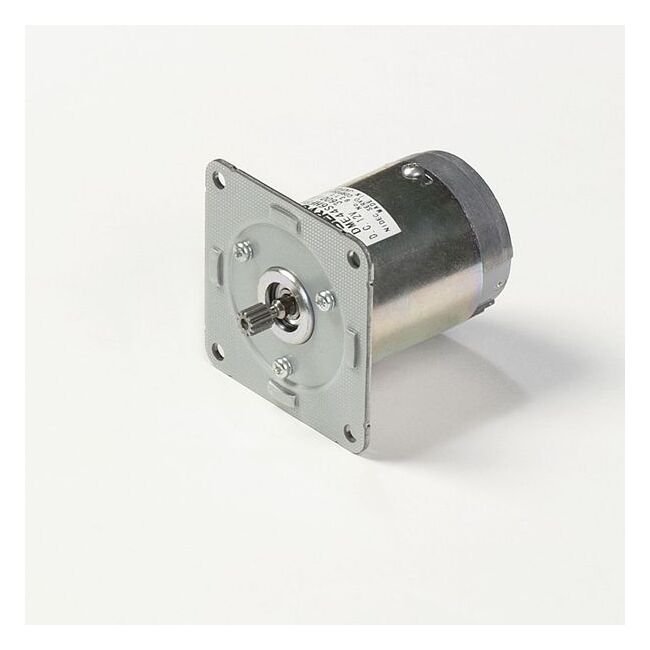

DME44 Series Motor with Gearbox 6DGF - High Power Compact DC Motor
DME44 Series Motor with Gearbox 6DGF - High Power Compact DC Motor
SKU:PER-8bdff4
Compact, high-power DME44 Series Motor with Gearbox 6DGF for durable performance and versatile applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DME44 Series Motor with Gearbox 6DGF - High Power Compact DC Motor
$189.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motor with Gearbox 6DGF - High Power Compact DC Motor
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motor with Gearbox 6DGF offers a compact design with high power ranging from 0.7 W to 26 W. With a variety of gear heads available in different sizes, this motor ensures long-life durability with over 1 million cycles of intermittent operation. Its high output capacity, heat dissipation, and resistance result in superior performance. Featuring a robust construction, large diameter output shaft, and ball bearings for high radial load capacity, this motor guarantees low noise, increased insulation, and a wide selection of gear heads and reduction ratios to meet various needs. Additionally, it comes with the option of a magnetic revolution sensor and noise filter.
Product Specifications
Additional Information 0
DME44S6HF.jpg | DME44-With-Gearbox-6DGF.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
1310 mA | 1.31 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
75
Specifications Model Code
SA
Specifications Product Type
Motor with Gearbox 6DGF
Specifications Rated Output
9.2 W
Specifications Rated Speed
48 r/min
Specifications Rated Torque
166.65 oz·in | 1.2 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME44
