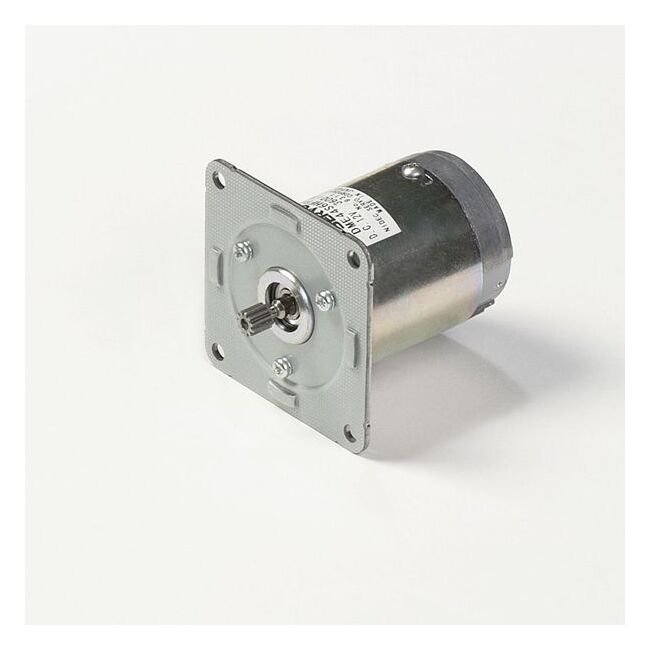

DME44 Series Motor with Gearbox 6DGF - High Power Compact DC Motor
DME44 Series Motor with Gearbox 6DGF - High Power Compact DC Motor
SKU:PER-ff7acf
Powerful and durable DME44 Series Motor with Gearbox 6DGF, ideal for diverse institutional and consumer applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME44 Series Motor with Gearbox 6DGF - High Power Compact DC Motor
$129.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motor with Gearbox 6DGF - High Power Compact DC Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motor with Gearbox 6DGF offers a compact design with high power ranging from 0.7W to 26W, suitable for a variety of institutional and consumer needs. With a long-life span of over 1 million cycles, optimized brush design, and continuous operating life of 2000 hours, this motor ensures durability and reliability. It features high output capacity, heat dissipation, and resistance, providing excellent performance. The robust construction, large diameter output shaft, and ball bearings contribute to its high strength and radial load capacity. Additionally, this motor offers low noise operation, increased insulation, and comes with a range of gear heads and reduction ratios to meet diverse requirements.
Product Specifications
Additional Information 0
DME44S6HF.jpg | DME44-With-Gearbox-6DGF.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
1310 mA | 1.31 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
12.5
Specifications Model Code
SA
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
Motor with Gearbox 6DGF
Specifications Rated Output
9.2 W
Specifications Rated Speed
288 r/min
Specifications Rated Torque
30.55 oz·in | 0.22 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME44
