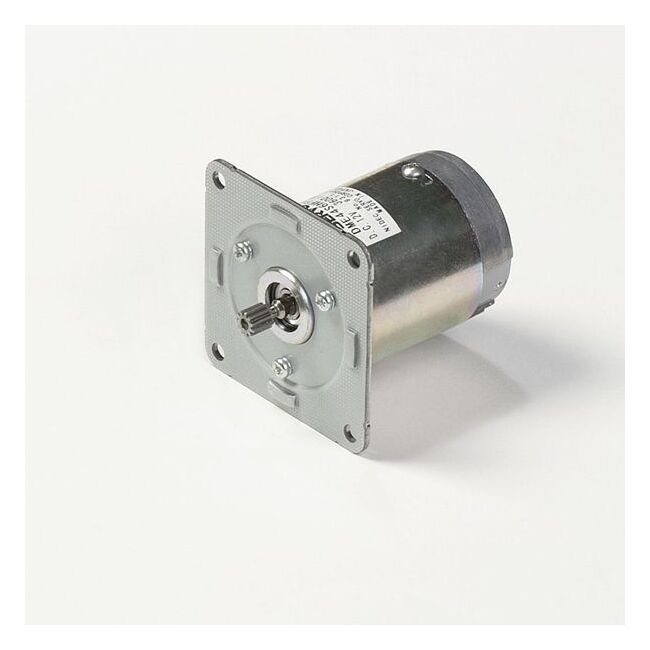

DME44 Series Motor with Gearbox 6DGF - High Power DC Motor
DME44 Series Motor with Gearbox 6DGF - High Power DC Motor
SKU:PER-e56ff5
Compact high-power motor with long-life operation, high heat dissipation, and low noise for diverse applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME44 Series Motor with Gearbox 6DGF - High Power DC Motor
$129.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motor with Gearbox 6DGF - High Power DC Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motor with Gearbox 6DGF offers a compact design with high power ranging from 0.7 W to 26 W. Featuring a variety of gear heads and 224 modes, this motor ensures optimal performance. With features like long-life operation, high heat dissipation, and robust construction, it delivers superior output. The motor's low noise, increased insulation, and wide selection of gear heads make it ideal for diverse institutional and industrial applications. Additionally, it can be customized to meet specific requirements.
Product Specifications
Additional Information 0
DME44S6HF.jpg | DME44-With-Gearbox-6DGF.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
1310 mA | 1.31 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
180
Specifications Model Code
SA
Specifications Product Type
Motor with Gearbox 6DGF
Specifications Rated Output
9.2 W
Specifications Rated Speed
20.6 r/min
Specifications Rated Torque
347.18 oz·in | 2.4 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME44
