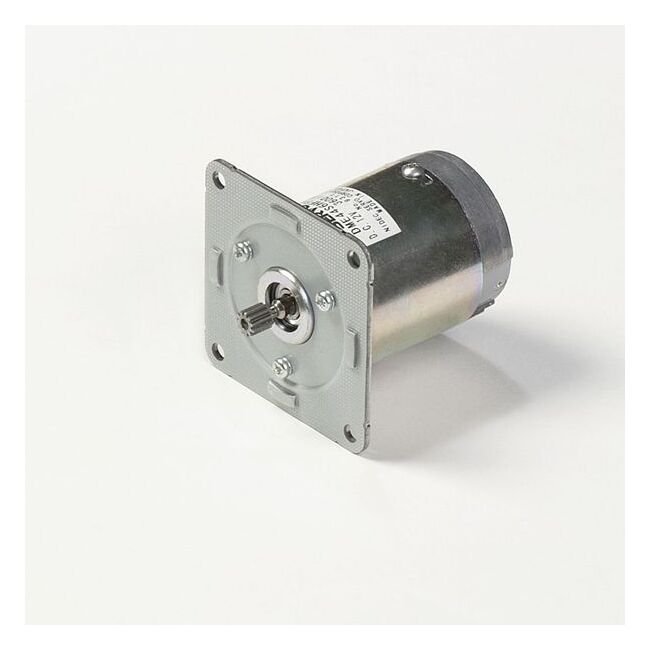

DME44 Series Motor with Gearbox 6DGF - High Power Permanent Magnet DC Motor
DME44 Series Motor with Gearbox 6DGF - High Power Permanent Magnet DC Motor
SKU:PER-e7447a
Compact, high-power DME44 Series Motor with Gearbox 6DGF for industrial precision applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DME44 Series Motor with Gearbox 6DGF - High Power Permanent Magnet DC Motor
$299.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motor with Gearbox 6DGF - High Power Permanent Magnet DC Motor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motor with Gearbox 6DGF is a compact yet high-power solution designed to meet the demanding requirements of industrial and institutional applications. With a power range of 0.7W to 26W, this motor offers long-life performance with over 1 million cycles of intermittent operation. It features high output capabilities, robust construction for high radial load capacity, and low noise characteristics, making it an ideal choice for applications that require reliability and efficiency. Additionally, the availability of various gear heads, reduction ratios, and optional magnetic revolution sensor and noise filter enhance its versatility and functionality.
Product Specifications
Additional Information 0
DME44S6HF.jpg | DME44-With-Gearbox-6DGF.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
1310 mA | 1.31 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
150
Specifications Model Code
SA
Specifications Product Type
Motor with Gearbox 6DGF
Specifications Rated Output
9.2 W
Specifications Rated Speed
24 r/min
Specifications Rated Torque
333.29 oz·in | 2.4 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME44
