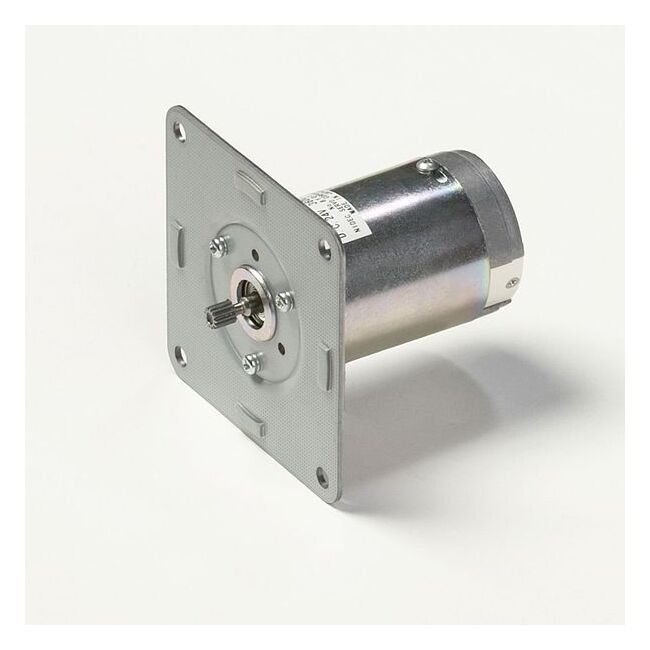

The DME44 Series Motor with Gearbox 8DG is a powerhouse of compact size and high power, ranging from 0.7 W to 26 W. With a variety of gear heads, including 32 Dia to 80 Sq options, this motor offers exceptional long-life performance, with intermittent operation exceeding 1 million cycles. It boasts high output capabilities with superior heat dissipation and resistance, ensuring durability and reliability. The motor's robust construction, large diameter output shaft, and ball bearings contribute to its high strength and radial load capacity. With low noise operation and increased insulation, along with options for magnetic revolution sensor and noise filter, this motor is a versatile and efficient choice for a wide range of applications.
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 2.362 in | M5 x 60 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
250
Specifications L1
4.374 in | 111.1 mm
Specifications L2
1.654 in | 42 mm
Specifications Model Code
BB
Specifications Note
When ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
15.5 r/min
Specifications Rated Torque
555.49 oz·in | 3.9 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
1.0 kg | 2.2 lb
