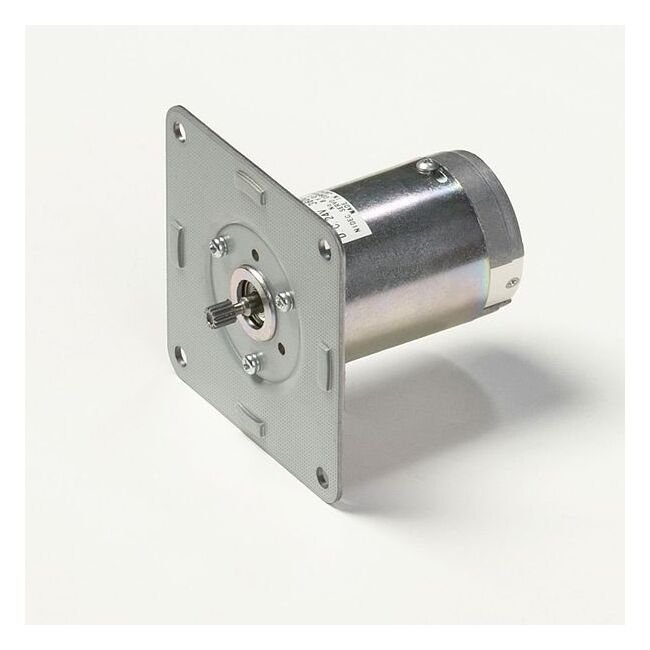

DME44 Series Motor with Gearbox 8DG - High Performance DC Motor with Gear Ratio 75
DME44 Series Motor with Gearbox 8DG - High Performance DC Motor with Gear Ratio 75
SKU:PER-ac32c4
High-performance DME44 Series Motor with Gearbox 8DG - Ideal for varied institutional needs
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME44 Series Motor with Gearbox 8DG - High Performance DC Motor with Gear Ratio 75
$89.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motor with Gearbox 8DG - High Performance DC Motor with Gear Ratio 75
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motor with Gearbox 8DG offers exceptional power ranging from 0.7 W to 26 W, with a wide selection of gear heads available. Designed for durability, it can handle over 1 million cycles of intermittent operation and boasts a continuous operating life of up to 2000 hours. With high output capacity, heat dissipation, and resistance, this motor ensures reliable performance. Featuring low noise operation, increased insulation, and a variety of gear head options, it meets diverse institutional procurement requirements.
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 1.969 in | M5 x 50 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
75
Specifications L1
3.98 in | 101.1 mm
Specifications L2
1.26 in | 32 mm
Specifications Model Code
BB
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motorWhen ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
48 r/min
Specifications Rated Torque
305.52 oz·in | 2.1 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
0.9 kg | 1.98 lb
