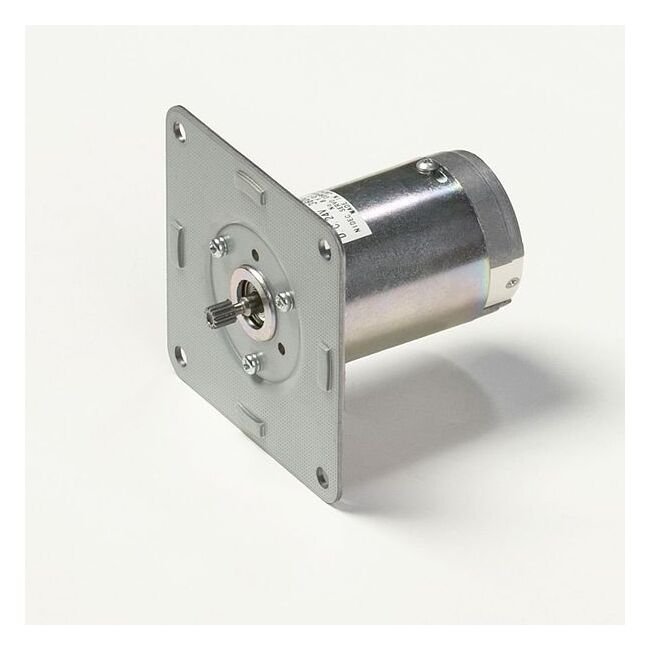

DME44 Series Motor with Gearbox 8DG - High-Performance Permanent Magnet DC Motor
DME44 Series Motor with Gearbox 8DG - High-Performance Permanent Magnet DC Motor
SKU:PER-fa00cc
High-power and compact DME44 Series Motor with Gearbox 8DG for lasting performance in diverse applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DME44 Series Motor with Gearbox 8DG - High-Performance Permanent Magnet DC Motor
$299.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motor with Gearbox 8DG - High-Performance Permanent Magnet DC Motor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior power and durability with the DME44 Series Motor with Gearbox 8DG. This compact motor delivers high power ranging from 0.7 W to 26 W, making it ideal for a variety of applications. With a continuous operating life of 2000 hours and intermittent operation over 1 million cycles, this motor ensures long-term reliability. Its high output, heat dissipation, and radial load capacity guarantee optimal performance. Additionally, the motor offers low noise operation, increased insulation, and a wide selection of gear heads and reduction ratios to meet diverse needs. Equip your machinery with this high-strength motor for superior efficiency and longevity.
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 2.362 in | M5 x 60 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
1800
Specifications L1
4.374 in | 111.1 mm
Specifications L2
1.654 in | 42 mm
Specifications Model Code
BB
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motorWhen ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
2.3 r/min
Specifications Rated Torque
555.49 oz·in | 3.9 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
1.0 kg | 2.2 lb
