DME44 Series Motor with Gearbox 8DG - High Power DC Motor
DME44 Series Motor with Gearbox 8DG - High Power DC Motor
SKU:PER-e49091
High power DC motor with gearbox for efficient performance in diverse applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME44 Series Motor with Gearbox 8DG - High Power DC Motor
$129.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motor with Gearbox 8DG - High Power DC Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

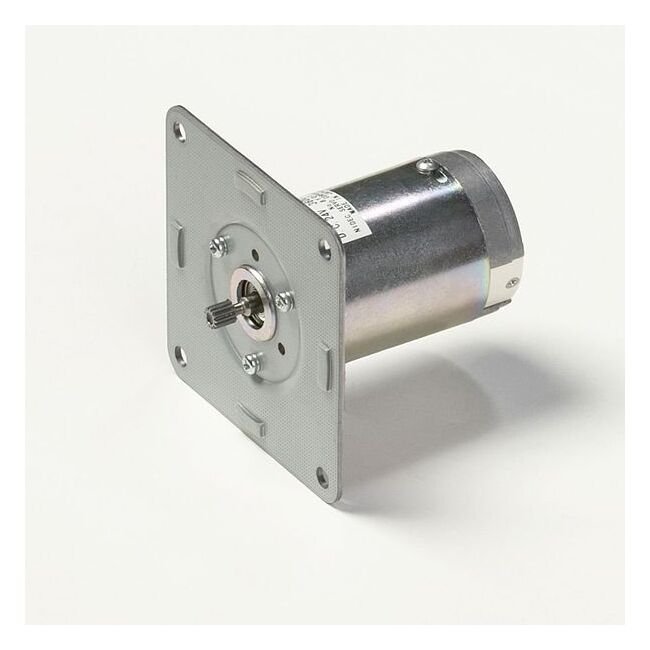

The DME44 Series Motor with Gearbox 8DG is a compact and powerful solution designed for a variety of gear heads, offering high efficiency, long life, and superior performance. With a continuous operating life of 2000 hours and the capability for over 1 million cycles of intermittent operation, this motor features optimized brush design for durability. Delivering high output and heat resistance for increased productivity, it also boasts high strength with a large radial load capacity. The low noise operation and insulation enhancements make it suitable for diverse applications. Choose from a range of gear heads and reduction ratios to meet specific requirements. Additionally, options include a magnetic revolution sensor and noise filter for added functionality.
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 1.969 in | M5 x 50 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
90
Specifications L1
3.98 in | 101.1 mm
Specifications L2
1.26 in | 32 mm
Specifications Model Code
BB
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motorWhen ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
40 r/min
Specifications Rated Torque
361.07 oz·in | 2.5 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
0.9 kg | 1.98 lb
