DME44 Series Motor with Gearbox 8DG - High Power & Long Life
DME44 Series Motor with Gearbox 8DG - High Power & Long Life
SKU:PER-eb7632
Compact, powerful, and durable motor with gearbox for varied applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DME44 Series Motor with Gearbox 8DG - High Power & Long Life
$299.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motor with Gearbox 8DG - High Power & Long Life
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

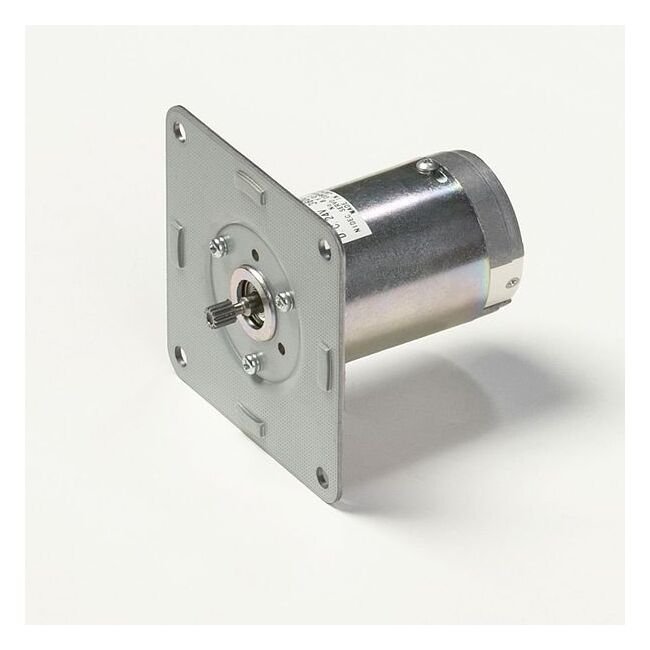

The DME44 Series Motor with Gearbox 8DG offers a compact size and exceptional power ranging from 0.7 W to 26 W. With a variety of gear heads available, this motor ensures optimal performance and versatility. It features a long operating life of over 1 million cycles, high heat dissipation, and resistance for increased output, robust construction for high radial load capacity, low noise levels, and enhanced insulation. Additionally, it comes with a wide selection of gear heads, reduction ratios, magnetic revolution sensor, and noise filter, catering to diverse operational needs.
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 2.362 in | M5 x 60 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
500
Specifications L1
4.374 in | 111.1 mm
Specifications L2
1.654 in | 42 mm
Specifications Model Code
BB
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motorWhen ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
8 r/min
Specifications Rated Torque
555.49 oz·in | 3.9 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
1.0 kg | 2.2 lb
