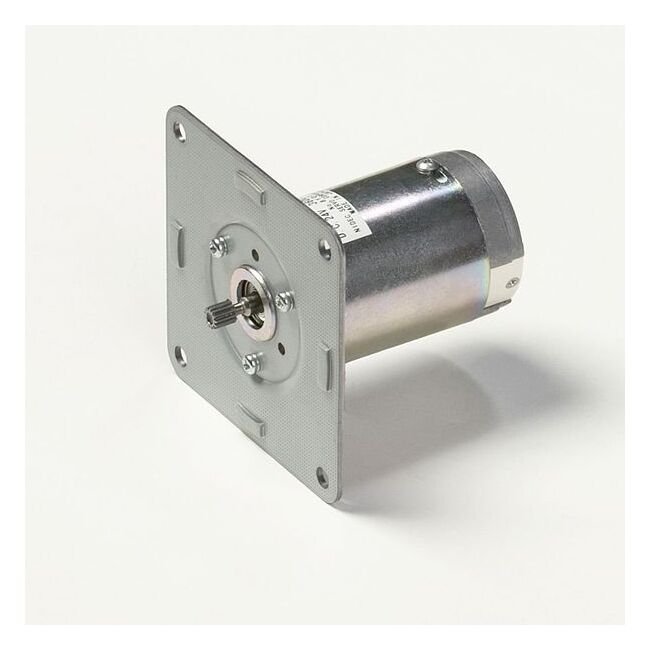

DME44 Series Motor with Gearbox 8DG - High Power Permanent Magnet DC Motor
DME44 Series Motor with Gearbox 8DG - High Power Permanent Magnet DC Motor
SKU:PER-6d7975
Compact, high-power DME44 Series Motor with Gearbox 8DG. Long-life, high output capabilities, and versatile gear selection for efficient performance.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
DME44 Series Motor with Gearbox 8DG - High Power Permanent Magnet DC Motor
$199.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motor with Gearbox 8DG - High Power Permanent Magnet DC Motor
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motor with Gearbox 8DG is a compact yet powerful solution ideal for various applications. With a power range of 0.7 W to 26 W and a variety of gear heads available, this motor ensures longevity with optimized brush design for over 1 million cycles. It boasts high output capabilities, heat dissipation, and radial load capacity, along with low noise and increased insulation. This motor comes with a magnetic revolution sensor and noise filter, making it a versatile and efficient choice for institutional and government buyers.
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 1.969 in | M5 x 50 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
30
Specifications L1
3.98 in | 101.1 mm
Specifications L2
1.26 in | 32 mm
Specifications Model Code
BB
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motorWhen ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
120 r/min
Specifications Rated Torque
120.82 oz·in | 0.85 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
0.9 kg | 1.98 lb
