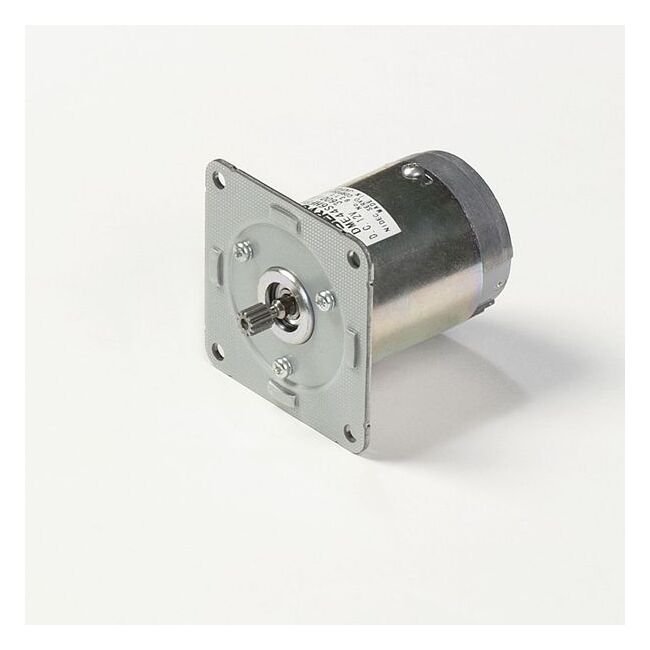

DME44 Series Motors with Gearbox 6DGF - High Power Compact Motor
DME44 Series Motors with Gearbox 6DGF - High Power Compact Motor
SKU:PER-76f6ed
Compact high-power motors with optimized brush design for longevity, high output, and low noise.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME44 Series Motors with Gearbox 6DGF - High Power Compact Motor
$129.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motors with Gearbox 6DGF - High Power Compact Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motors with Gearbox 6DGF offer a compact size with high power ranging from 0.7 W to 26 W. With a variety of gear heads available, including 32 Dia to 80 Sq and others, these motors are designed for longevity and high output. Featuring an optimized brush design for long-life operation, these motors have a continuous operating life of 2000 hours. They boast high heat dissipation and heat resistance for increased output, along with high radial load capacity due to a robust construction and large diameter output shaft. Additionally, these motors provide low noise, increased insulation, and come with a large selection of gear heads and reduction ratios to meet various institutional needs.
Product Specifications
Additional Information 0
DME44S6HF.jpg | DME44-With-Gearbox-6DGF.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
1310 mA | 1.31 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
30
Specifications Model Code
SA
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
Motor with Gearbox 6DGF
Specifications Rated Output
9.2 W
Specifications Rated Speed
120 r/min
Specifications Rated Torque
74.99 oz·in | 0.53 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME44
