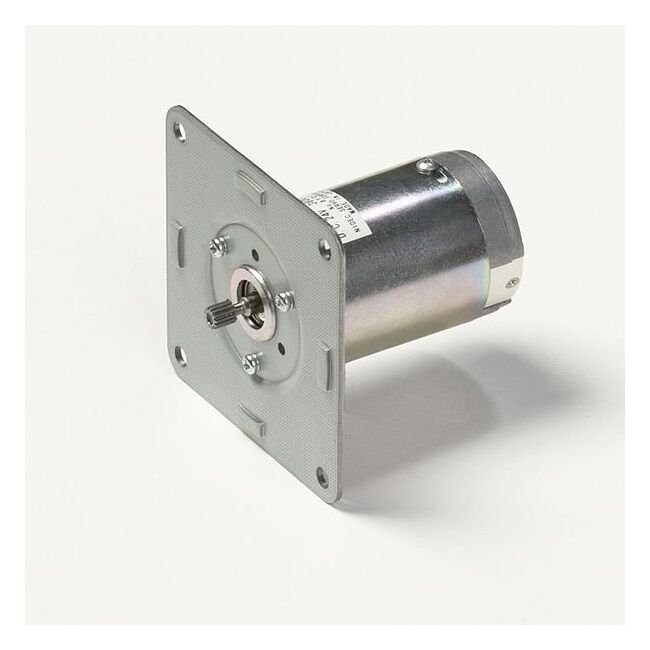

DME44 Series Motors with Gearbox 8DG - High Power DC Motor
DME44 Series Motors with Gearbox 8DG - High Power DC Motor
SKU:PER-54965e
High power, compact DC motor with optimized brush design, high heat dissipation, and variety gear heads for enhanced performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DME44 Series Motors with Gearbox 8DG - High Power DC Motor
$349.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motors with Gearbox 8DG - High Power DC Motor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motors with Gearbox 8DG offers compact size, high power output ranging from 0.7 W to 26 W. With a variety of gear heads available and optimized brush design for long-life operation, this motor ensures over 1 million cycles of intermittent use. Featuring high heat dissipation, heat resistance, and robust construction, these motors deliver increased output and radial load capacity. The selection of gear heads, reduction ratios, and optional magnetic revolution sensor and noise filter make it ideal for institutional applications that demand reliability and efficiency.
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 1.969 in | M5 x 50 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
100
Specifications L1
3.98 in | 101.1 mm
Specifications L2
1.26 in | 32 mm
Specifications Model Code
BB
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motorWhen ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
36 r/min
Specifications Rated Torque
402.73 oz·in | 2.8 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
0.9 kg | 1.98 lb
