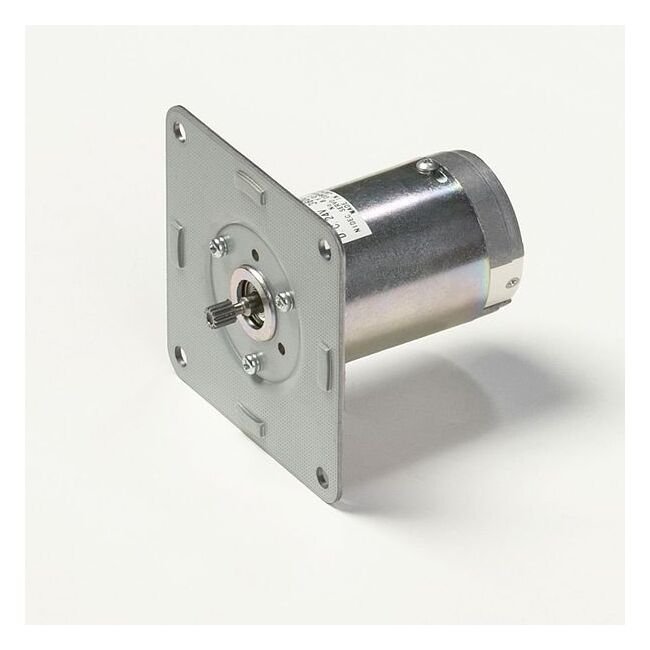

DME44 Series Motors with Gearbox 8DG - High Power DC Motor
DME44 Series Motors with Gearbox 8DG - High Power DC Motor
SKU:PER-2daef1
Compact high-power motor with long-life operation, high output, and low noise features. Various gear heads and reduction ratios available.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DME44 Series Motors with Gearbox 8DG - High Power DC Motor
$349.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motors with Gearbox 8DG - High Power DC Motor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motors with Gearbox 8DG offers a compact size with high power ranging from 0.7W to 26W. With a variety of line-ups and gear heads available, it features unparalleled longevity, high output, and strength. Designed for over 1 million cycles of intermittent operation, this motor boasts a continuous operating life of 2000 hours. Its high heat dissipation and resistance lead to a remarkable output, while its robust construction ensures a high radial load capacity. Additionally, the motor provides low noise, increased insulation, and comes with various gear head options to suit diverse needs. Equipped with a magnetic revolution sensor and noise filter, it stands out as a reliable and efficient choice for a wide range of applications.
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 1.969 in | M5 x 50 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
150
Specifications L1
3.98 in | 101.1 mm
Specifications L2
1.26 in | 32 mm
Specifications Model Code
BB
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motorWhen ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
24.4 r/min
Specifications Rated Torque
555.49 oz·in | 3.9 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
0.9 kg | 1.98 lb
