DME44 Series Motors with Gearbox 8DG - High Power Motor for Institutional Applications
DME44 Series Motors with Gearbox 8DG - High Power Motor for Institutional Applications
SKU:PER-c0c093
Compact, high-power DME44 Series Motors with Gearbox 8DG for lasting performance in institutional applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DME44 Series Motors with Gearbox 8DG - High Power Motor for Institutional Applications
$349.99
Quantity: 1
Claim Your Seller Account
DME44 Series Motors with Gearbox 8DG - High Power Motor for Institutional Applications
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

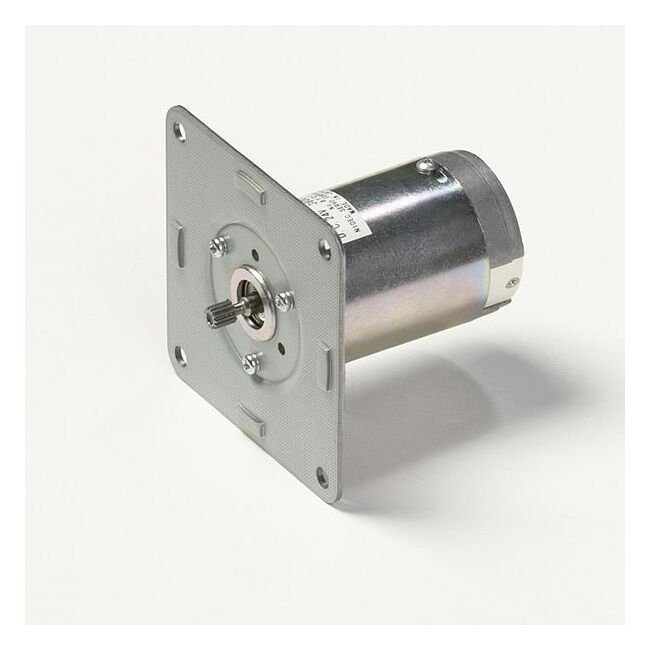

Meet the demanding power needs of institutional and government projects with the DME44 Series Motors with Gearbox 8DG. This compact yet powerful motor (0.7 W-26 W) boasts a long lifespan of over 1 million cycles thanks to its optimized brush design. With a continuous operating life of 2000 hours, high heat dissipation, and resistance, this motor delivers superior output. Benefit from its high radial load capacity, low noise operation, and increased insulation. Choose from a variety of gear heads and reduction ratios to customize your setup. Also available with a magnetic revolution sensor and noise filter for added functionality.
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 2.362 in | M5 x 60 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
750
Specifications L1
4.374 in | 111.1 mm
Specifications L2
1.654 in | 42 mm
Specifications Model Code
BB
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motorWhen ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
5.5 r/min
Specifications Rated Torque
555.49 oz·in | 3.9 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
1.0 kg | 2.2 lb
