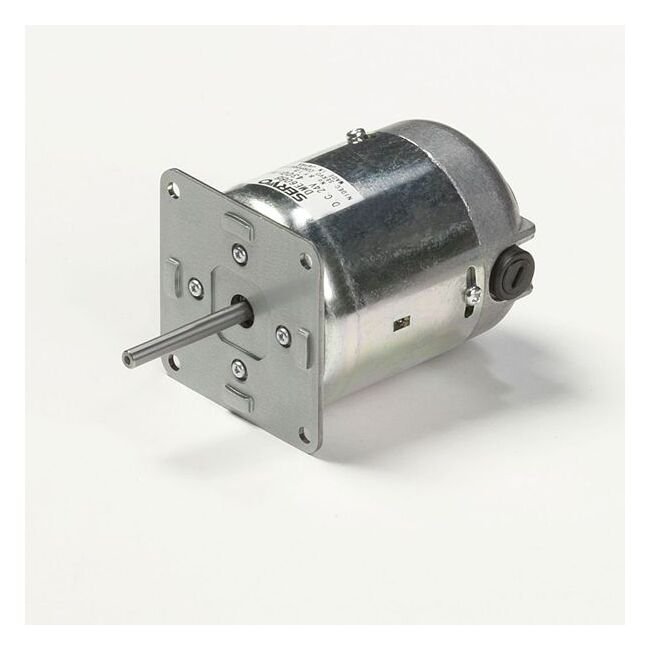

DME60 Series DC Motors with Pulse Generators

Name: DME60 Series DC Motors with Pulse Generators
Brand: Elinco International JPC, Inc.
SKU: PER-a1f5c9
Price: 149.99 USD
Availability: OutOfStock

SKU:PER-a1f5c9

Compact, high-power DME60 Series DC Motors with Pulse Generators for reliable performance.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DME60 Series DC Motors with Pulse Generators are precision-engineered for both high power (0.7 W-26 W) and compact size, making them ideal for various applications. With a wide range of gear heads available (32 Dia-80 Sq and others) and optimized brush design for long-life performance, these motors offer continuous operating life of 3000 hours and can handle over 1 million cycles of intermittent operation. High heat dissipation, heat resistance, and robust construction ensure high output and radial load capacity. Featuring low noise, increased insulation, and compatibility with magnetic revolution sensors and noise filters, these motors meet the demanding requirements of institutional and government procurement standards.

Product Specifications

Additional Information 0

Customize 0

Custom Designs

Dimensions 0


Specifications Current Rating

1790 mA | 1.79 A

Specifications Frame Size

60 x 60 mm | 2.362 x 2.362 in

Specifications Model Code

Specifications No Load Current

0.42 A

Specifications No Load Speed

5000 r/min

Specifications Product Type

DC Motor

Specifications Rated Output

26 W

Specifications Rated Speed

4300 r/min

Specifications Rated Torque

59 mNÂ·m | 8.33 ozÂ·in

Specifications Rated Voltage

24 V

Specifications Series

DME60

Specifications Stall Torque

392 mNÂ·m | 55.55 ozÂ·in

Specifications Weight

650 g | 1.43 lb

Torque Curve 0


DME60 Series DC Motors with Pulse Generators
