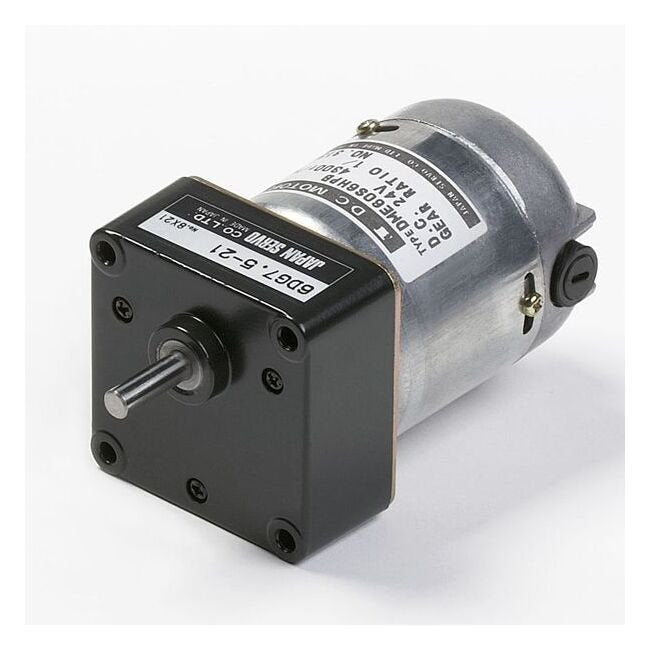

DME60 Series Motor with Gearbox 6DG - High Output DC Motor with Gearbox
DME60 Series Motor with Gearbox 6DG - High Output DC Motor with Gearbox
SKU:PER-52ceee
Powerful and reliable DME60 Series Motor with Gearbox 6DG for industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DME60 Series Motor with Gearbox 6DG - High Output DC Motor with Gearbox
$99.99
Quantity: 1
Claim Your Seller Account
DME60 Series Motor with Gearbox 6DG - High Output DC Motor with Gearbox
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME60 Series Motor with Gearbox 6DG is a compact, high-power solution designed for demanding industrial applications. With a rated output of 13W and a gear ratio of 450, this motor offers high heat dissipation, heat resistance, and a long operating life of 3000 hours. Its robust construction and large selection of gear heads ensure optimal performance and customization to meet various needs. Equipped with a magnetic revolution sensor and noise filter, this motor ensures low noise operation and increased insulation. Ideal for applications requiring high radial load capacity and reliable performance over 1 million cycles.
Product Specifications
Additional Information 0
DME60 Series Motors with Gearbox 6DG (DME60S6HPB) | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
2070 mA | 2.07 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
450
Specifications Model Code
SA
Specifications Note
6DG gearboxes are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example: DME60B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearbox with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model as in the following example: DME60B6H_B
Specifications Product Type
Motor with Gearbox 6DG
Specifications Rated Output
13 W
Specifications Rated Speed
12 r/min
Specifications Rated Torque
0.98 mN·m | 138.87 oz·in
Specifications Rated Voltage
12 V
Specifications Series
DME60
