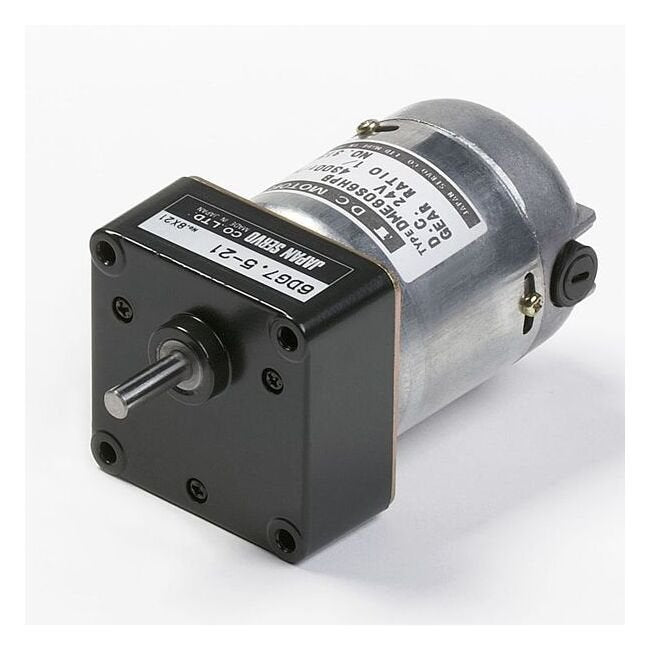

DME60 Series Motor with Gearbox 6DG - High Power DC Motor
DME60 Series Motor with Gearbox 6DG - High Power DC Motor
SKU:PER-c672fc
Compact, high-power DME60 Series Motors with Gearbox 6DG for reliable and durable performance. Ideal for diverse applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME60 Series Motor with Gearbox 6DG - High Power DC Motor
$129.99
Quantity: 1
Claim Your Seller Account
DME60 Series Motor with Gearbox 6DG - High Power DC Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME60 Series Motors with Gearbox 6DG offer a compact size and high power ranging from 0.7W to 26W, making them ideal for a variety of applications. With a long-life design optimized for over 1 million cycles, continuous operating life of 3000 hours, and high output capabilities, these motors ensure reliability and durability. Featuring high radial load capacity, low noise operation, and increased insulation, these motors with gearbox provide superior performance. Available with a range of gear heads, magnetic revolution sensor, and noise filter, the DME60 Series Motors meet diverse institutional procurement requirements.
Product Specifications
Additional Information 0
DME60 Series Motors with Gearbox 6DG (DME60S6HPB) | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
2070 mA | 2.07 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
750
Specifications Model Code
SA
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor6DG gearboxes are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example: DME60B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearbox with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model as in the following example: DME60B6H_B
Specifications Product Type
Motor with Gearbox 6DG
Specifications Rated Output
13 W
Specifications Rated Speed
6.6 r/min
Specifications Rated Torque
0.98 mN·m | 138.87 oz·in
Specifications Rated Voltage
12 V
Specifications Series
DME60
