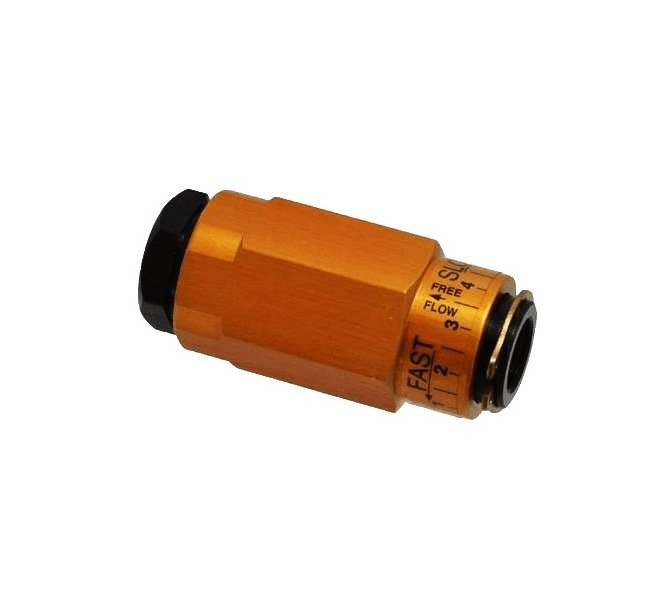

DMF Series 1/2 Inch (in) Thread Size Flow Control Valve

Name: DMF Series 1/2 Inch (in) Thread Size Flow Control Valve
Brand: Pneuline Supply, Inc.
SKU: DMF-9a6ffa
Price: 49.99 USD
Availability: OutOfStock

SKU:DMF-9a6ffa

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

DMF Series is an aluminum Flow Control Valve for air and oil. Its maximum working pressure is 250 psi, and its temperature range is -40ºF to 250ºF. Also, the sizes available are 1/4-28 Male/Female and 1/8", 1/4", 3/8", and 1/2" Female NPT. These valves control flow in one direction and allow free flow in the opposite direction.

Product Specifications

Note

If you do not see exactly what you are looking for, please contact our sales department.

Technical Specs Material

Aluminum

Technical Specs Maximum Operating Pressure

250 psi

Technical Specs Series

DMF

Technical Specs Temperature Range

-40 to 250 ºF

Technical Specs Thread Size

1/2 in

Technical Specs Thread Type

Female National Pipe Thread (FNPT)

DMF Series 1/2 Inch (in) Thread Size Flow Control Valve
