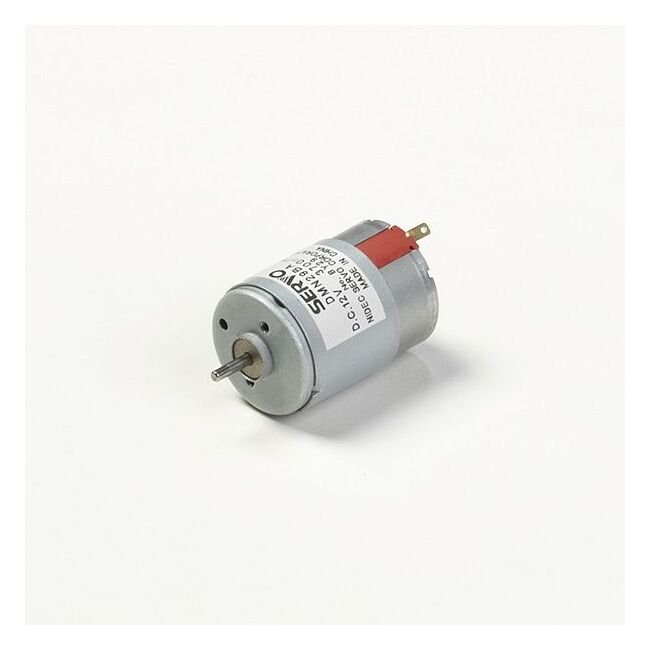

DMN29 50G Series DC Brush Motor for Continual Operation
DMN29 50G Series DC Brush Motor for Continual Operation
SKU:PER-0a8d72
High-performance DMN29 50G DC Brush Motor for continuous operation with 8.07 oz·in torque, 411 r/min speed, and 12V voltage. Robust construction, low noise, and high heat dissipation.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DMN29 50G Series DC Brush Motor for Continual Operation
$89.99
Quantity: 1
Claim Your Seller Account
DMN29 50G Series DC Brush Motor for Continual Operation
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN29 50G Series DC Brush Motor is a high-performance solution designed for continuous operation, ideal for applications requiring long-lasting performance. With a rated torque of 8.07 oz·in, speed of 411 r/min, and 12V voltage, this motor offers reliable power output. Its robust construction, optimized brush design, and large diameter output shaft ensure high radial load capacity. Additionally, the motor features low noise levels, increased insulation, and high heat dissipation for efficient operation. Choose from a variety of gear heads and reduction ratios to tailor to specific requirements. The DMN29 50G Series is a durable, high-output motor built to meet institutional procurement standards.
Product Specifications
Additional Information 0
DMN29 50G Series DC Brush Motors with Continuous Operation | DMN29 L Series DC Brush Motors with Intermittent Operation (DMN29B) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Diameter
1.969 in | 50 mm
Specifications Gear Ratio
9
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
8.07 oz·in | 0.057 N·m
Specifications Series
DMN29
Specifications Speed
411 r/min
Specifications Voltage
12 V
Specifications Weight
230 g | 0.51 lb
