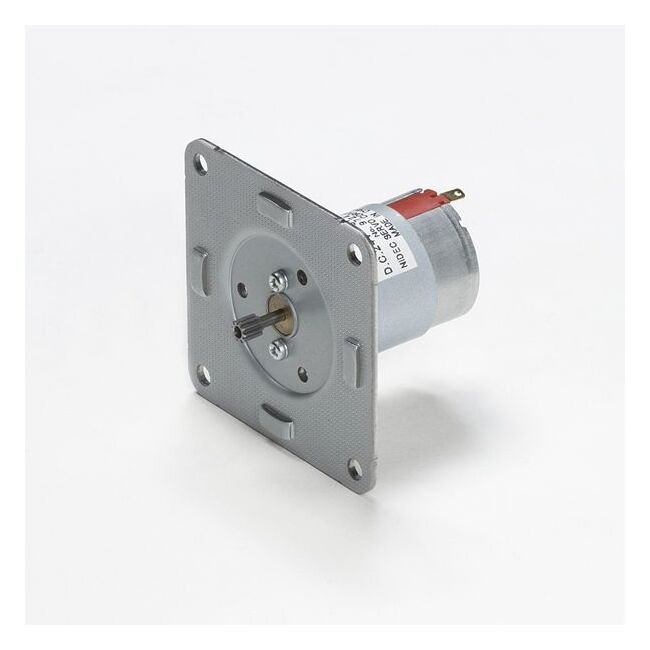

DMN29 6DG High-Performance DC Brush Motor
DMN29 6DG High-Performance DC Brush Motor
SKU:PER-329990
Optimized for durability and efficiency, the DMN29 6DG Series DC Brush Motor is a top choice for long-term performance in various applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DMN29 6DG High-Performance DC Brush Motor
$129.99
Quantity: 1
Claim Your Seller Account
DMN29 6DG High-Performance DC Brush Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched durability and efficiency with the DMN29 6DG High-Performance DC Brush Motor. With a continuous operating life of 3000 hours and high radial load capacity, this motor is designed for long-term performance. Featuring high heat dissipation, low noise, and a range of gear ratios available, it ensures optimal output for various applications. Ideal for government and institutional buyers seeking reliability and quality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DMN29 6DG Series DC Brush Motors with Continuous Operation | DMN29 6DG Series DC Brush Motors with Continuous Operation (DMN29B6HPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
61 x 61 mm | 1.949 in
Specifications Gear Ratio
750
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock.When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN29B6HP? (Pinion shaft motor)6DG_(Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request.When ordering, please write the combine motor and gearbox model, as in the following example : DMN29B6H( )_Enter the required reduction ration in ( )Enter the required voltage A or B in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
139 oz·in | 0.98 N·m
Specifications Series
DMN29
Specifications Speed
6.2 r/min
Specifications Voltage Dc
12 V
Specifications Weight
350 g | 0.77 lb
