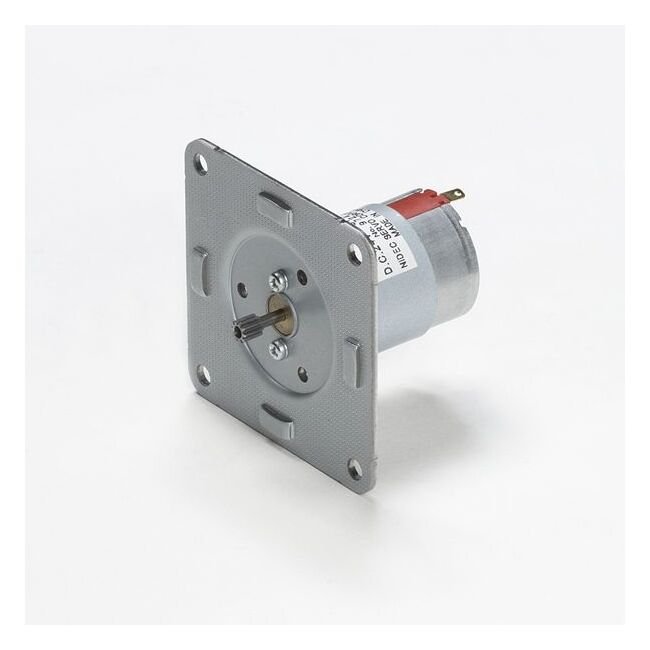

DMN29 6DG Series DC Brush Motor with Continuous Operation
DMN29 6DG Series DC Brush Motor with Continuous Operation
SKU:PER-ff1ced
Robust DMN29 6DG Series DC Brush Motor for continuous operation, high output, and durability. Ideal for diverse needs.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DMN29 6DG Series DC Brush Motor with Continuous Operation
$189.99
Quantity: 1
Claim Your Seller Account
DMN29 6DG Series DC Brush Motor with Continuous Operation
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN29 6DG Series DC Brush Motor offers exceptional durability with the ability for continuous operation up to 3000 hours. Designed for longevity, this motor withstands over 1 million cycles with optimized brush design. Featuring high output capacity and heat dissipation, it ensures reliable performance. Its robust construction provides high radial load capacity, complemented by low noise and increased insulation. With various gear head options and reduction ratios, this motor caters to diverse needs, making it ideal for institutional and government procurement requirements.
Product Specifications
Additional Information 0
DMN29 6DG Series DC Brush Motors with Continuous Operation | DMN29 6DG Series DC Brush Motors with Continuous Operation (DMN29B6HPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
61 x 61 mm | 1.949 in
Specifications Gear Ratio
180
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock.When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN29B6HP? (Pinion shaft motor)6DG_(Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request.When ordering, please write the combine motor and gearbox model, as in the following example : DMN29B6H( )_Enter the required reduction ration in ( )Enter the required voltage A or B in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
131 oz·in | 0.93 N·m
Specifications Series
DMN29
Specifications Speed
20.6 r/min
Specifications Voltage Dc
24 V
Specifications Weight
350 g | 0.77 lb
