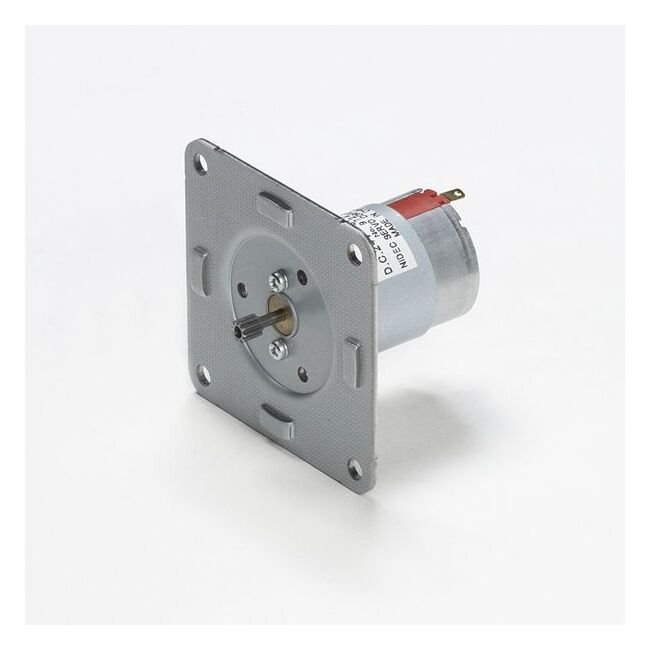

DMN29 6DG Series DC Brush Motor with Continuous Operation - High Output & Low Noise
DMN29 6DG Series DC Brush Motor with Continuous Operation - High Output & Low Noise
SKU:PER-41f0eb
High-performing DMN29 6DG Series DC Brush Motors - Reliable, Efficient, Quiet
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
DMN29 6DG Series DC Brush Motor with Continuous Operation - High Output & Low Noise
$249.99
Quantity: 1
Claim Your Seller Account
DMN29 6DG Series DC Brush Motor with Continuous Operation - High Output & Low Noise
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN29 6DG Series DC Brush Motors with Continuous Operation are engineered for long-lasting performance, capable of over 1 million cycles of intermittent operation. With a continuous operating life of 3000 hours, these motors ensure reliability in demanding applications. Featuring high heat dissipation and resistance, they deliver impressive output while maintaining low noise levels and increased insulation. The motors come with a wide selection of gear heads and reduction ratios to meet diverse needs, and options for magnetic revolution sensors and noise filters. Their robust construction, large diameter output shaft, and ball bearings provide high radial load capacity, making them ideal for various industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DMN29 6DG Series DC Brush Motors with Continuous Operation | DMN29 6DG Series DC Brush Motors with Continuous Operation (DMN29B6HPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
61 x 61 mm | 1.949 in
Specifications Gear Ratio
120
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock.When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN29B6HP? (Pinion shaft motor)6DG_(Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request.When ordering, please write the combine motor and gearbox model, as in the following example : DMN29B6H( )_Enter the required reduction ration in ( )Enter the required voltage A or B in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
97.4 oz·in | 0.69 N·m
Specifications Series
DMN29
Specifications Speed
30.8 r/min
Specifications Voltage Dc
12 V
Specifications Weight
350 g | 0.77 lb
