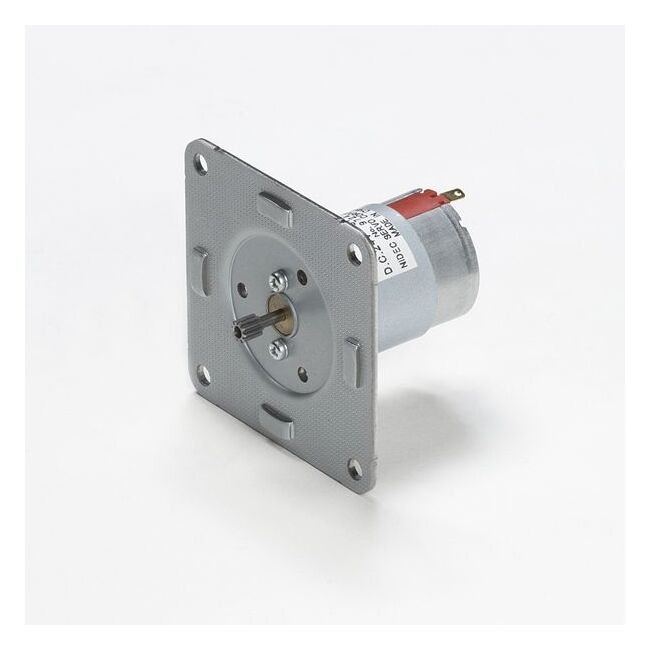

DMN29 6DG Series DC Brush Motor with Continuous Operation - High Output & Low Noise
DMN29 6DG Series DC Brush Motor with Continuous Operation - High Output & Low Noise
SKU:PER-fe20df
Durable DMN29 6DG DC Brush Motor for high output and low noise. Ideal for reliable performance.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DMN29 6DG Series DC Brush Motor with Continuous Operation - High Output & Low Noise
$99.99
Quantity: 1
Claim Your Seller Account
DMN29 6DG Series DC Brush Motor with Continuous Operation - High Output & Low Noise
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN29 6DG Series DC Brush Motor is designed for durability, with optimized brush design for over 1 million cycles of intermittent operation and 3000 hours of continuous operation. Its high heat dissipation and resistance result in higher output, while the robust construction provides a high radial load capacity. The motor offers low noise and increased insulation with new resin brush holders. With a variety of gear heads and reduction ratios available, it meets diverse needs effortlessly. Ideal for applications requiring reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DMN29 6DG Series DC Brush Motors with Continuous Operation | DMN29 6DG Series DC Brush Motors with Continuous Operation (DMN29B6HPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
61 x 61 mm | 1.949 in
Specifications Gear Ratio
360
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock.When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN29B6HP? (Pinion shaft motor)6DG_(Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request.When ordering, please write the combine motor and gearbox model, as in the following example : DMN29B6H( )_Enter the required reduction ration in ( )Enter the required voltage A or B in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
139 oz·in | 0.98 N·m
Specifications Series
DMN29
Specifications Speed
12 r/min
Specifications Voltage Dc
12 V
Specifications Weight
350 g | 0.77 lb
