DMN29 6DG Series DC Brush Motor with Continuous Operation - High Performance
DMN29 6DG Series DC Brush Motor with Continuous Operation - High Performance
SKU:PER-478f43
Reliable DMN29 6DG DC Brush Motor for continuous high-output operation. Ideal for varied applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DMN29 6DG Series DC Brush Motor with Continuous Operation - High Performance
$89.99
Quantity: 1
Claim Your Seller Account
DMN29 6DG Series DC Brush Motor with Continuous Operation - High Performance
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

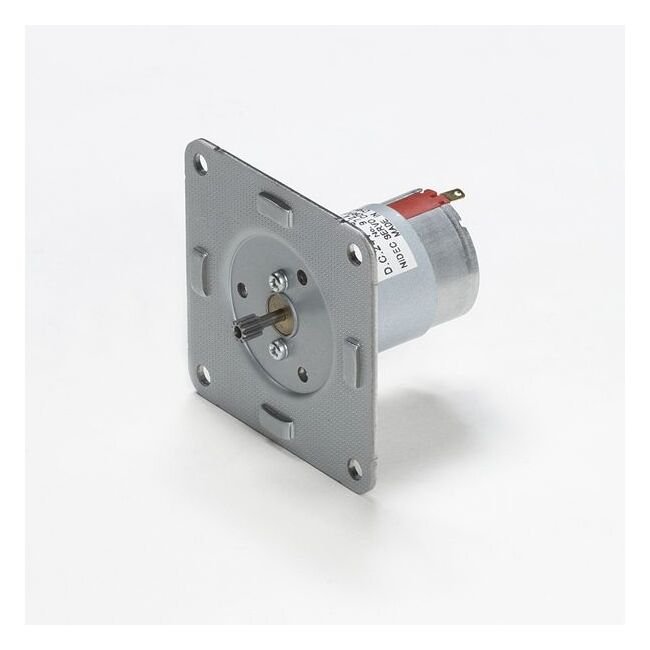

The DMN29 6DG Series DC Brush Motor is designed for exceptional durability and performance, with the capacity for over 1 million cycles of intermittent operation. Featuring optimized brush design for long-life usage, it boasts a continuous operating life of 3000 hours. With high heat dissipation and resistance, this motor achieves superior output and high radial load capacity. The low noise and increased insulation make it ideal for diverse applications. Additionally, it offers a wide selection of gear heads, reduction ratios, and optional features like magnetic revolution sensors and noise filters.
Product Specifications
Additional Information 0
DMN29 6DG Series DC Brush Motors with Continuous Operation | DMN29 6DG Series DC Brush Motors with Continuous Operation (DMN29B6HPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
61 x 61 mm | 1.949 in
Specifications Gear Ratio
9
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock.When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN29B6HP? (Pinion shaft motor)6DG_(Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request.When ordering, please write the combine motor and gearbox model, as in the following example : DMN29B6H( )_Enter the required reduction ration in ( )Enter the required voltage A or B in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
8.07 oz·in | 0.057 N·m
Specifications Series
DMN29
Specifications Speed
411 r/min
Specifications Voltage Dc
12 V
Specifications Weight
350 g | 0.77 lb
