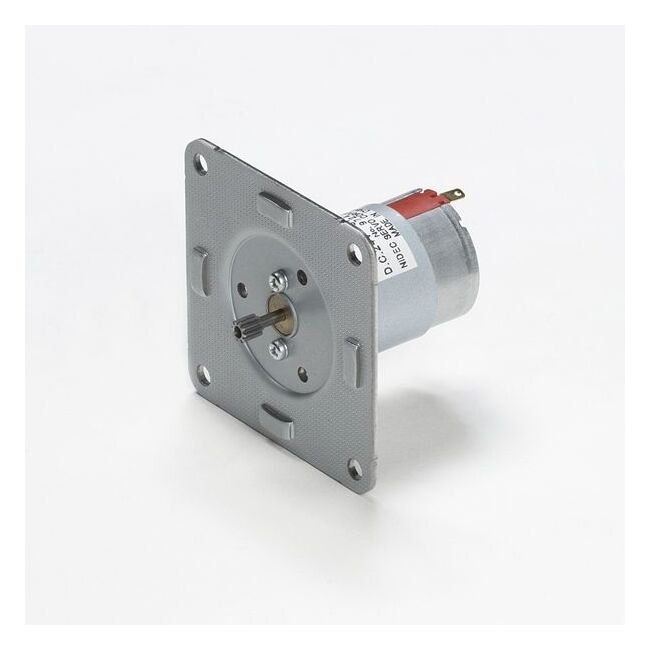

DMN29 6DG Series DC Brush Motor with High-Output Efficiency
DMN29 6DG Series DC Brush Motor with High-Output Efficiency
SKU:PER-99c5a9
Experience high-output efficiency with the durable DMN29 6DG Series DC Brush Motor, ideal for continuous operations.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
DMN29 6DG Series DC Brush Motor with High-Output Efficiency
$159.99
Quantity: 1
Claim Your Seller Account
DMN29 6DG Series DC Brush Motor with High-Output Efficiency
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN29 6DG Series DC Brush Motor is engineered for robust performance in continuous operation, offering an impressive lifespan of over 1 million cycles with optimized brush design. With a continuous operating life of 3000 hours, this motor delivers high output efficiency through superior heat dissipation and resistance, resulting in increased productivity. Its durable construction ensures high radial load capacity, complemented by low noise levels and enhanced insulation for reliability. Equipped with various gear head options and reduction ratios, this motor is customizable to meet diverse operational needs, making it an excellent choice for institutions and government buyers seeking longevity and high performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DMN29 6DG Series DC Brush Motors with Continuous Operation | DMN29 6DG Series DC Brush Motors with Continuous Operation (DMN29B6HPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
61 x 61 mm | 1.949 in
Specifications Gear Ratio
600
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock.When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN29B6HP? (Pinion shaft motor)6DG_(Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request.When ordering, please write the combine motor and gearbox model, as in the following example : DMN29B6H( )_Enter the required reduction ration in ( )Enter the required voltage A or B in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
139 oz·in | 0.98 N·m
Specifications Series
DMN29
Specifications Speed
7.6 r/min
Specifications Voltage Dc
12 V
Specifications Weight
350 g | 0.77 lb
