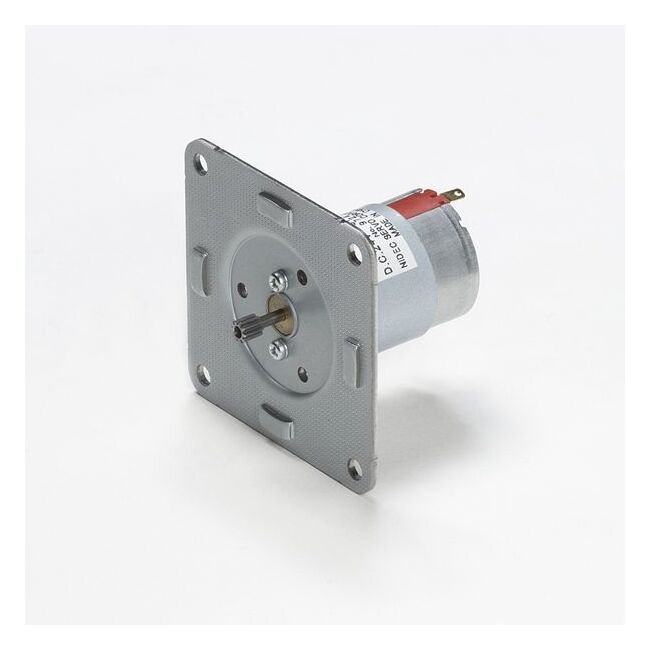

DMN29 6DG Series DC Brush Motors
DMN29 6DG Series DC Brush Motors
SKU:PER-87b140
High-performance DC Brush Motors for long-lasting continuous operation with low noise and high efficiency. Ideal for a wide range of applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DMN29 6DG Series DC Brush Motors
$129.99
Quantity: 1
Claim Your Seller Account
DMN29 6DG Series DC Brush Motors
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN29 6DG Series DC Brush Motors with Continuous Operation offer unparalleled performance for both intermittent and continuous operation. With a robust construction and optimized brush design, these motors boast a long life span of over 1 million cycles. The high output, heat dissipation, and heat resistance ensure superior performance, while the large selection of gear heads and reduction ratios cater to various needs. Additionally, these motors feature low noise, increased insulation, and options for magnetic revolution sensors and noise filters, making them ideal for both consumer and institutional applications.
Product Specifications
Additional Information 0
DMN29 6DG Series DC Brush Motors with Continuous Operation | DMN29 6DG Series DC Brush Motors with Continuous Operation (DMN29B6HPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
61 x 61 mm | 1.949 in
Specifications Gear Ratio
180
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock.When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN29B6HP? (Pinion shaft motor)6DG_(Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request.When ordering, please write the combine motor and gearbox model, as in the following example : DMN29B6H( )_Enter the required reduction ration in ( )Enter the required voltage A or B in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
131 oz·in | 0.93 N·m
Specifications Series
DMN29
Specifications Speed
20.6 r/min
Specifications Voltage Dc
12 V
Specifications Weight
350 g | 0.77 lb
