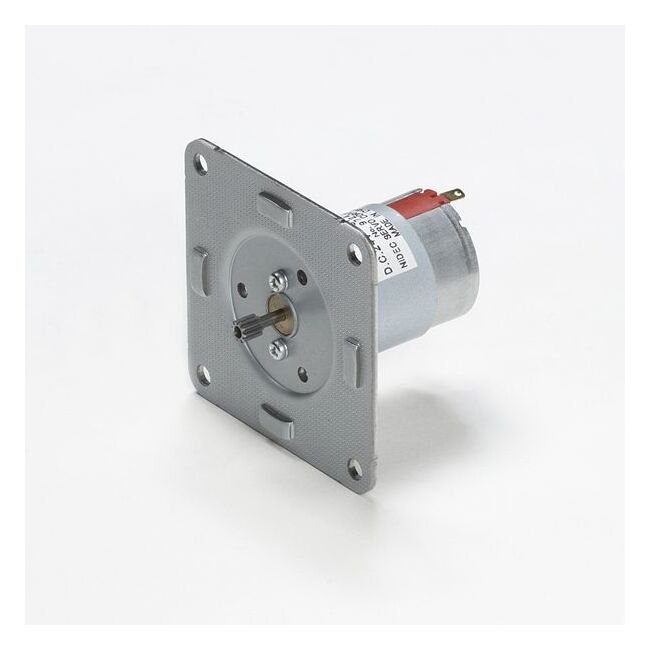

DMN29 6DG Series High-Output DC Brush Motor
DMN29 6DG Series High-Output DC Brush Motor
SKU:PER-39e9ef
High-output DC brush motor with continuous operation, long-lasting performance, high heat dissipation, low noise levels, and versatile gear options.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
DMN29 6DG Series High-Output DC Brush Motor
$249.99
Quantity: 1
Claim Your Seller Account
DMN29 6DG Series High-Output DC Brush Motor
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN29 6DG Series DC Brush Motors with Continuous Operation is designed for long-lasting performance in demanding applications. With a continuous operating life of 3000 hours and high heat dissipation, it delivers a high output while maintaining low noise levels. The robust construction ensures a high radial load capacity, and the availability of various gear heads and reduction ratios makes it versatile for diverse needs. Additionally, it features new resin brush holders for increased insulation. Ideal for institutions and government agencies seeking durable and reliable motor solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DMN29 6DG Series DC Brush Motors with Continuous Operation | DMN29 6DG Series DC Brush Motors with Continuous Operation (DMN29B6HPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
61 x 61 mm | 1.949 in
Specifications Gear Ratio
600
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock.When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN29B6HP? (Pinion shaft motor)6DG_(Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request.When ordering, please write the combine motor and gearbox model, as in the following example : DMN29B6H( )_Enter the required reduction ration in ( )Enter the required voltage A or B in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
139 oz·in | 0.98 N·m
Specifications Series
DMN29
Specifications Speed
7.6 r/min
Specifications Voltage Dc
24 V
Specifications Weight
350 g | 0.77 lb
