DMN29 6DG Series High-Output DC Brush Motor with Extended Lifespan
DMN29 6DG Series High-Output DC Brush Motor with Extended Lifespan
SKU:PER-3ec398
Enhanced DMN29 6DG Series DC Brush Motor with high output, extended lifespan, and customizable gear options.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DMN29 6DG Series High-Output DC Brush Motor with Extended Lifespan
$129.99
Quantity: 1
Claim Your Seller Account
DMN29 6DG Series High-Output DC Brush Motor with Extended Lifespan
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

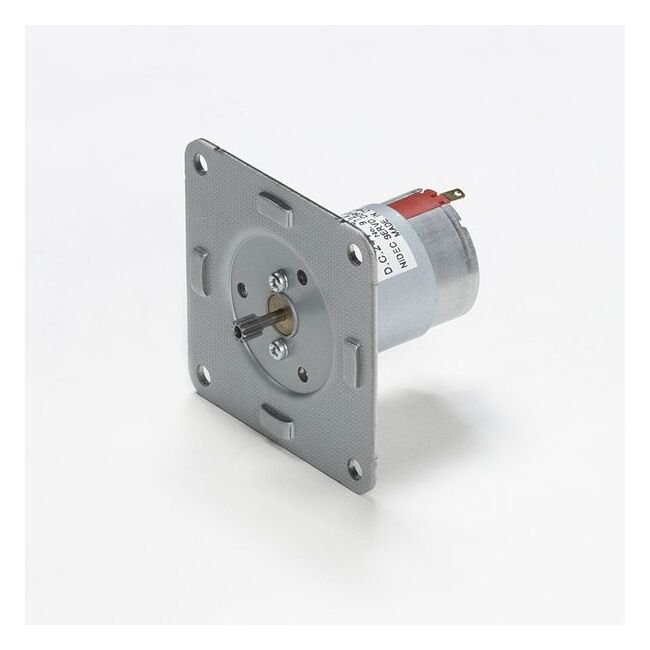

The DMN29 6DG Series DC Brush Motor is engineered for superior performance and durability, with a design optimized for continuous operation over 1 million cycles. Featuring high heat dissipation and resistance, this motor delivers increased output levels. Its robust construction and large diameter output shaft ensure high radial load capacity. Additionally, the motor offers low noise operation and enhanced insulation for quiet and efficient performance. With a wide selection of gear heads and reduction ratios, this motor can be customized to meet various requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DMN29 6DG Series DC Brush Motors with Continuous Operation | DMN29 6DG Series DC Brush Motors with Continuous Operation (DMN29B6HPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
61 x 61 mm | 1.949 in
Specifications Gear Ratio
15
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock.When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN29B6HP? (Pinion shaft motor)6DG_(Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request.When ordering, please write the combine motor and gearbox model, as in the following example : DMN29B6H( )_Enter the required reduction ration in ( )Enter the required voltage A or B in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
13.5 oz·in | 0.10 N·m
Specifications Series
DMN29
Specifications Speed
247 r/min
Specifications Voltage Dc
12 V
Specifications Weight
350 g | 0.77 lb
