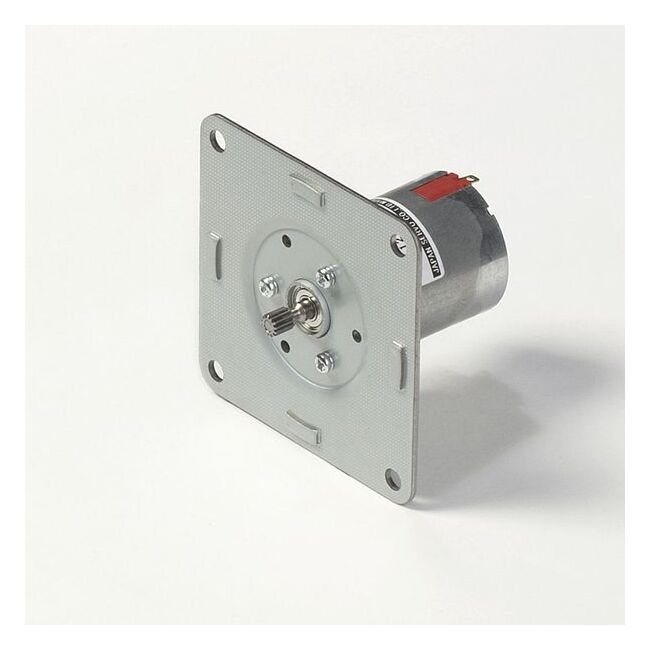

DMN37 8DG Series DC Brush Motor
DMN37 8DG Series DC Brush Motor
SKU:PER-aa128b
Reliable, high-performance DMN37 8DG Series DC Brush Motor for longevity and efficiency in diverse applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DMN37 8DG Series DC Brush Motor
$189.99
Quantity: 1
Claim Your Seller Account
DMN37 8DG Series DC Brush Motor
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 8DG Series DC Brush Motor is engineered for exceptional longevity and high performance in various applications. With over 1 million cycles of intermittent operation and a continuous operating life of 3000 hours, this motor ensures reliability. Its robust construction, large diameter output shaft, and ball bearings provide high strength and radial load capacity. Additionally, the motor offers low noise levels and improved insulation due to advanced resin brush holders. Choose from a wide selection of gear heads and reduction ratios to customize based on specific needs. The motor also features optional magnetic revolution sensor and noise filter for enhanced functionality.
Product Specifications
Additional Information 0
DMN37 8DG Series DC Brush Motors with Continuous Operation | DMN37 8DG Series DC Brush Motors with Continuous Operation (DMN37B8HPA) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Bolt
M5 x 60 mm | M5 x 2.362 in
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
1500
Specifications L1
96.7 mm | 3.807 in
Specifications L2
42 mm | 1.654 in
Specifications Note
When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN37B8HPB (Pinion shaft motor)8DG_ (Gearbox)Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
556 oz·in | 3.9 N·m
Specifications Series
DMN37
Specifications Speed
3.5 r/min
Specifications Voltage
12 V
Specifications Weight
880 g | 1.9 lb
