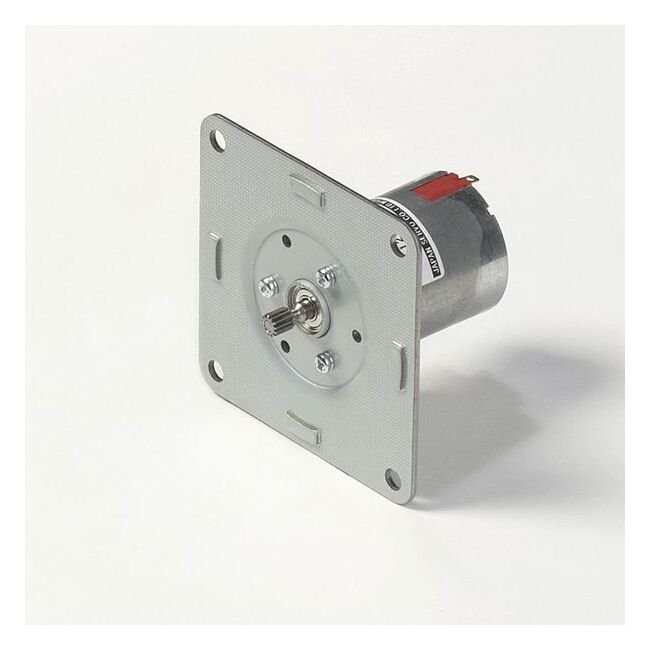

DMN37 8DG Series DC Brush Motor with Continuous Operation
DMN37 8DG Series DC Brush Motor with Continuous Operation
SKU:PER-1310ee
Enhanced DMN37 8DG Series DC Brush Motor for reliable continuous operation and high performance output.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
DMN37 8DG Series DC Brush Motor with Continuous Operation
$149.99
Quantity: 1
Claim Your Seller Account
DMN37 8DG Series DC Brush Motor with Continuous Operation
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 8DG Series DC Brush Motor is engineered for reliability and efficiency, designed for continuous operation with a long life span of over 1 million cycles. With optimized brush design, it offers high output performance, exceptional heat dissipation, and heat resistance. This motor boasts a robust construction for high radial load capacity, low noise operation, and increased insulation. Featuring a large selection of gear heads and reduction ratios, as well as options for magnetic revolution sensor and noise filter, the DMN37 8DG Series is versatile and adaptable to various needs, making it an ideal choice for both consumer and institutional buyers.
Product Specifications
Additional Information 0
DMN37 8DG Series DC Brush Motors with Continuous Operation | DMN37 8DG Series DC Brush Motors with Continuous Operation (DMN37B8HPA) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Bolt
M5 x 50 mm | M5 x 1.967 in
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
12.5
Specifications L1
86.7 mm | 3.413 in
Specifications L2
32 mm | 1.260 in
Specifications Note
When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN37B8HPB (Pinion shaft motor)8DG_ (Gearbox)
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
20.9 oz·in | 0.15 N·m
Specifications Series
DMN37
Specifications Speed
376 r/min
Specifications Voltage
12 V
Specifications Weight
780 g | 1.7 lb
